Component Disassembly & Reassembly: Accumulators: Reassembly

Install "O" rings on accumulator using ATF. Install accumulator piston and spring. Install stopper plug and "O" ring. Install snap ring while applying pressure to stopper plug. For remainder of installation procedures, reverse disassembly procedures. Ensure snap ring is seated properly.

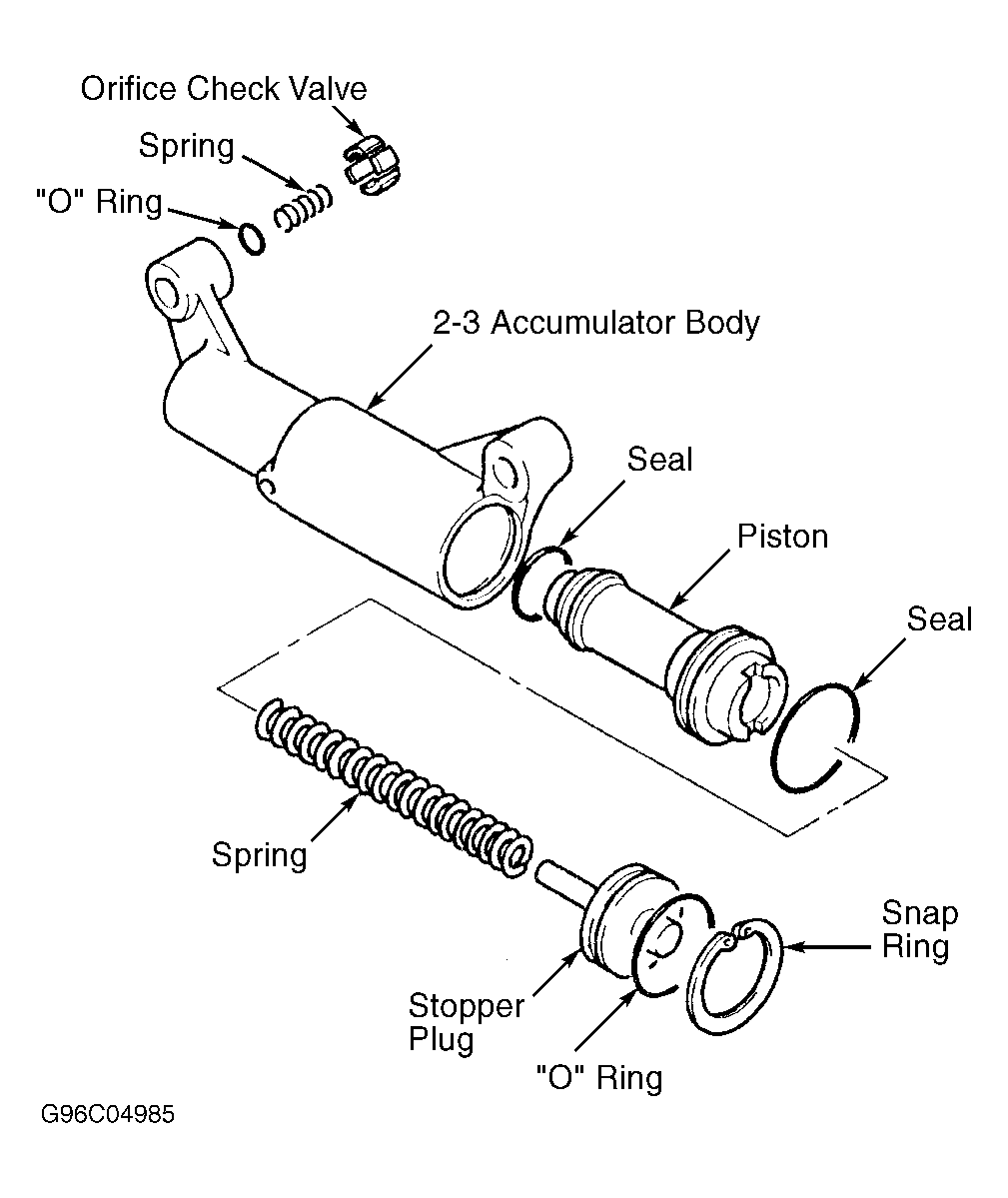

Fig 1: Exploded View Of 2-3 Accumulator

Courtesy of MAZDA MOTORS CORP.
