Brake Pedal Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the brake switch connector.

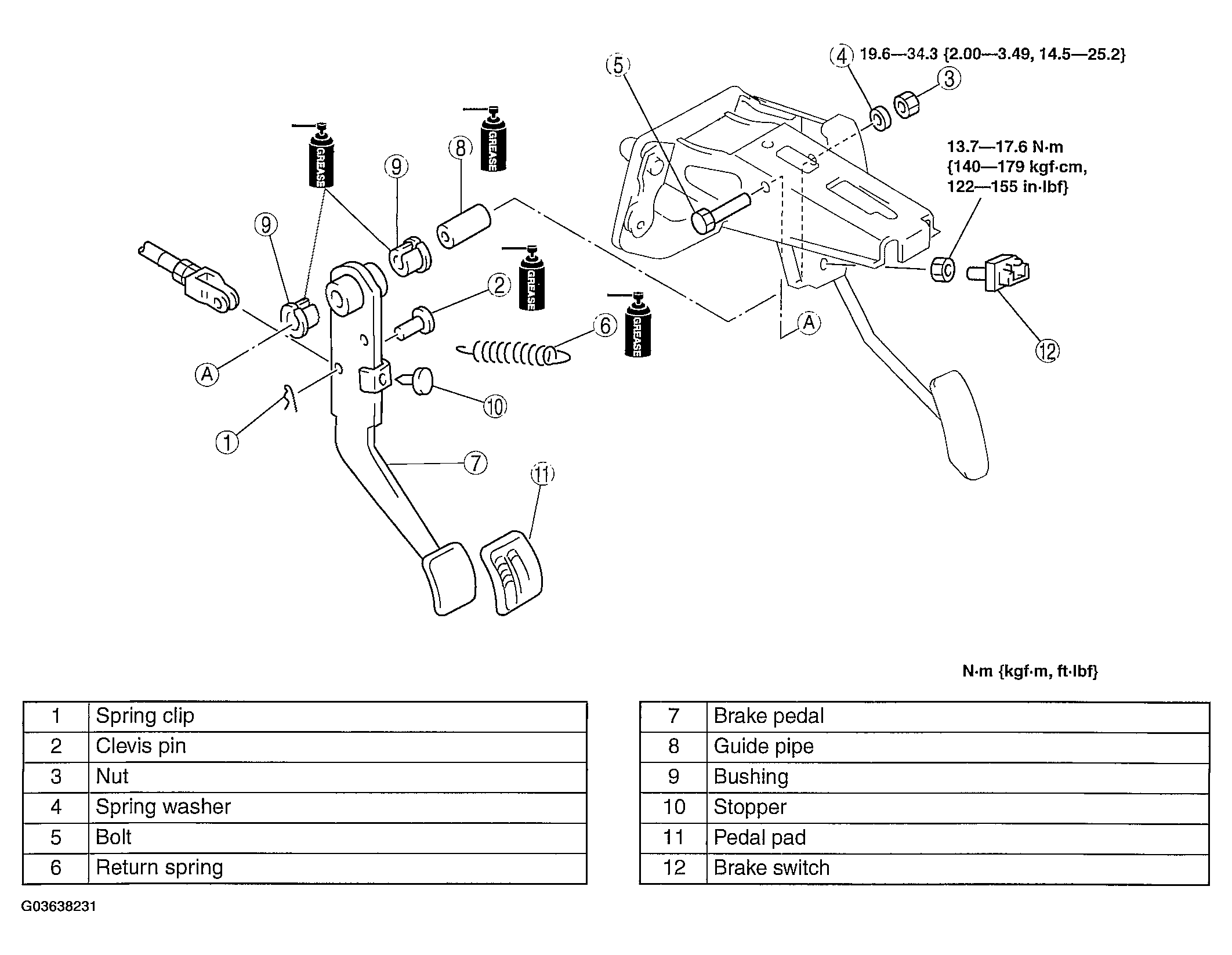

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, verify and adjust the pedal height and free play as necessary.
Courtesy of MAZDA MOTORS CORP.
