Wheel Hub Bolt Replacement

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

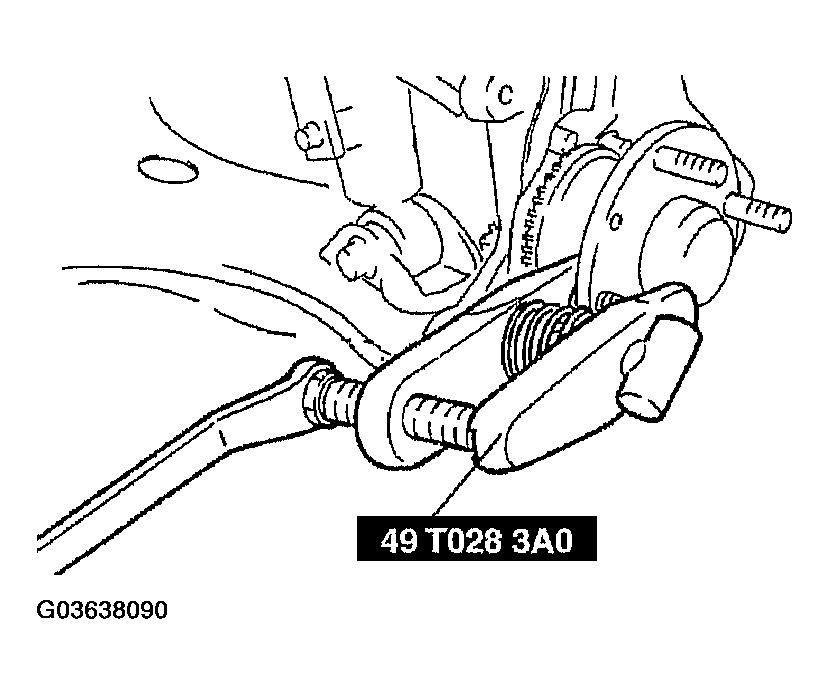

  1. Remove the hub bolt using the SST.
  2. Install the hub bolt into the wheel hub and install a washer and hub nut on the hub bolt using a brass bar.
    Fig 1: Installing Hub Bolt Into Wheel Hub
    G03638090Courtesy of MAZDA MOTORS CORP.
  3. Tighten the hub nut while holding the wheel hub using a brass bar.

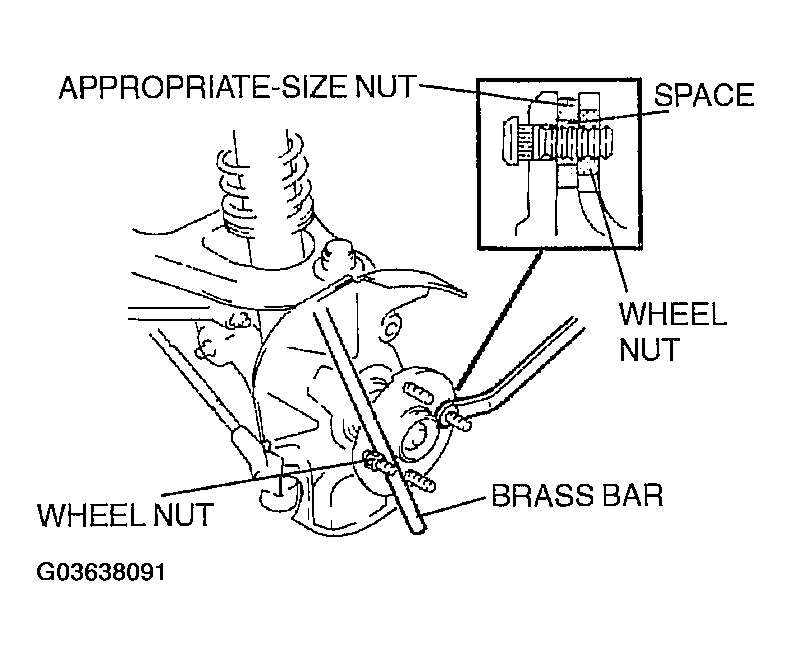

    Fig 2: Tightening Hub Nut While Holding Wheel Hub
    G03638091Courtesy of MAZDA MOTORS CORP.
