CROSSMEMBER Component Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crossmember component.
  2. Install the crossmember component.

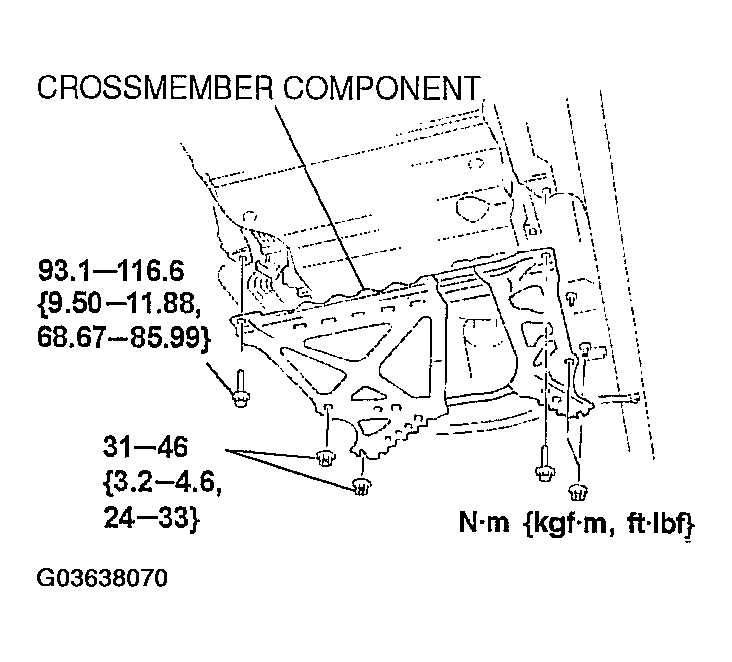

    Fig 1: Installing Crossmember Component & Torque Specifications
    G03638070Courtesy of MAZDA MOTORS CORP.
