Rear Speaker Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION .)
    2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
    3. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. Remove the rear pillar trim. (See REAR PILLAR TRIM REMOVAL/INSTALLATION .)
    5. Remove the rear package center trim, the rear package side trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

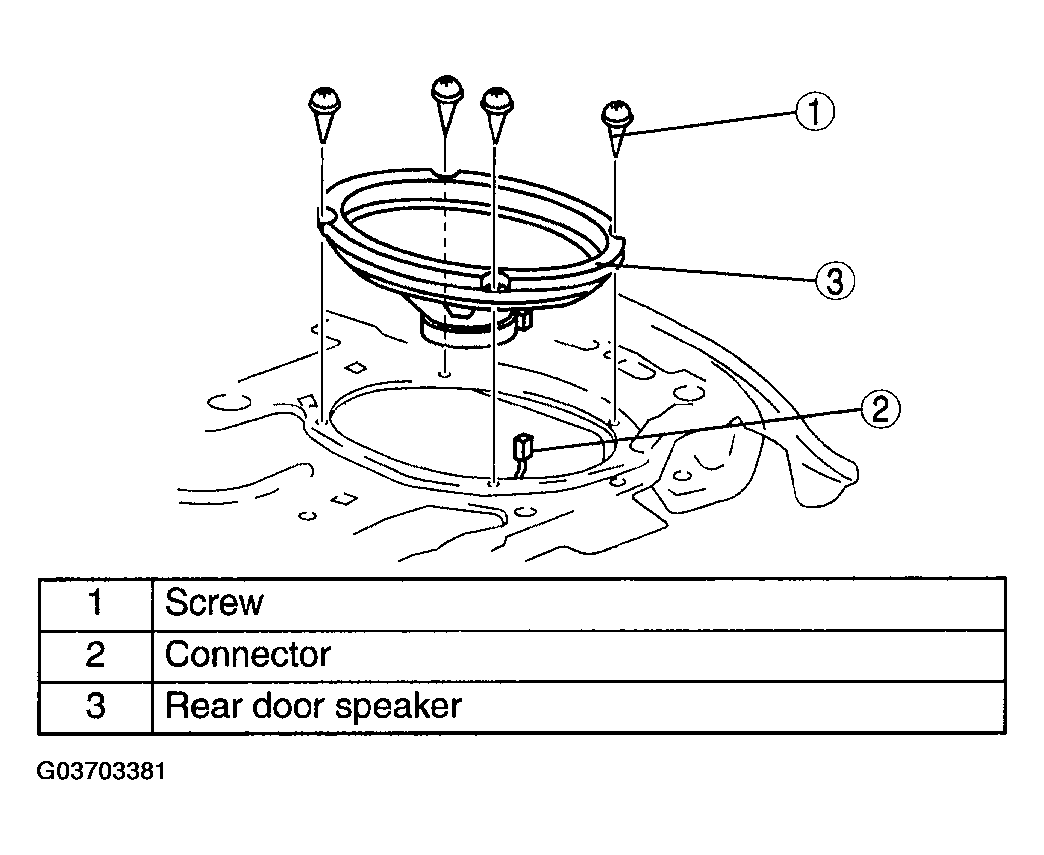

    Fig 1: Removing Rear Door Speaker
    G03703381Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
