AUDIOPILOT Microphone Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- "AudioPilot" is a registered trademark of Bose Corporation.
- Disconnect the negative battery cable.
- Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)

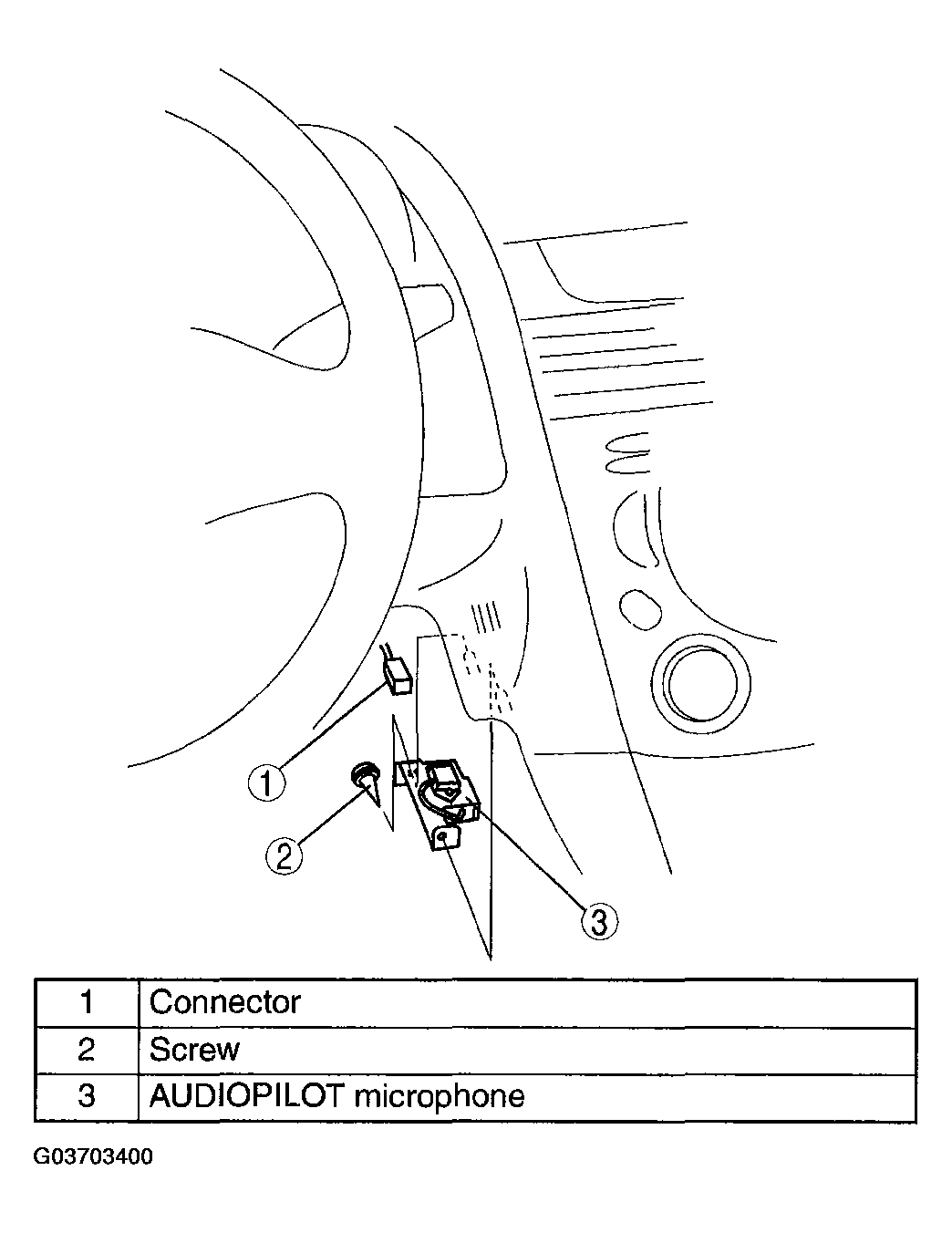

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
