Engine Mount Bracket (RH) Removal Note: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the SST  and support the engine.
  2. Remove the engine mount rubber (LH) installation nut.
    Fig 1: Removing Engine Mount Rubber (LH) Installation Nut
    G03701952Courtesy of MAZDA MOTORS CORP.
  3. Remove in the order indicated in the table.

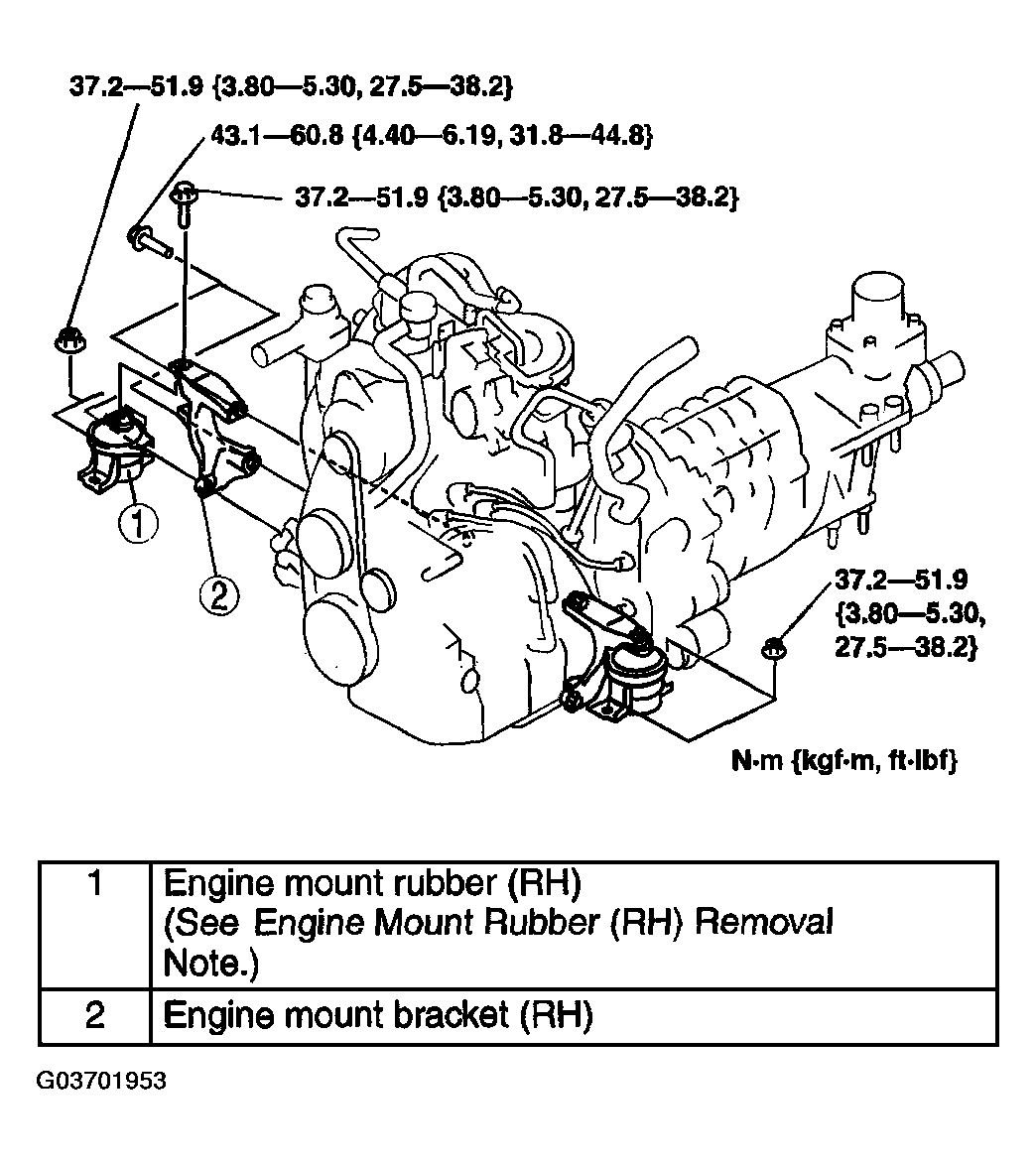

    Fig 2: Removing Engine Mount Bracket And Engine Mount Rubber With Torque Specifications
    G03701953Courtesy of MAZDA MOTORS CORP.
