Fan Motor Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
  2. Remove the battery cover.
  3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  5. Remove the following.
    1. Splash shield
    2. Under cover
    3. Battery, battery box (See BATTERY REMOVAL/INSTALLATION .)
    4. Air cleaner component, air cleaner insulator (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
    5. PCM duct
  6. Position the coolant reserve tank out of the way. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
  7. Disconnect the ATF oil cooler hose. (AT)
  8. Remove the radiator and cooling fan component. (See RADIATOR REMOVAL/INSTALLATION .)
  9. Remove in the order indicated in the table.

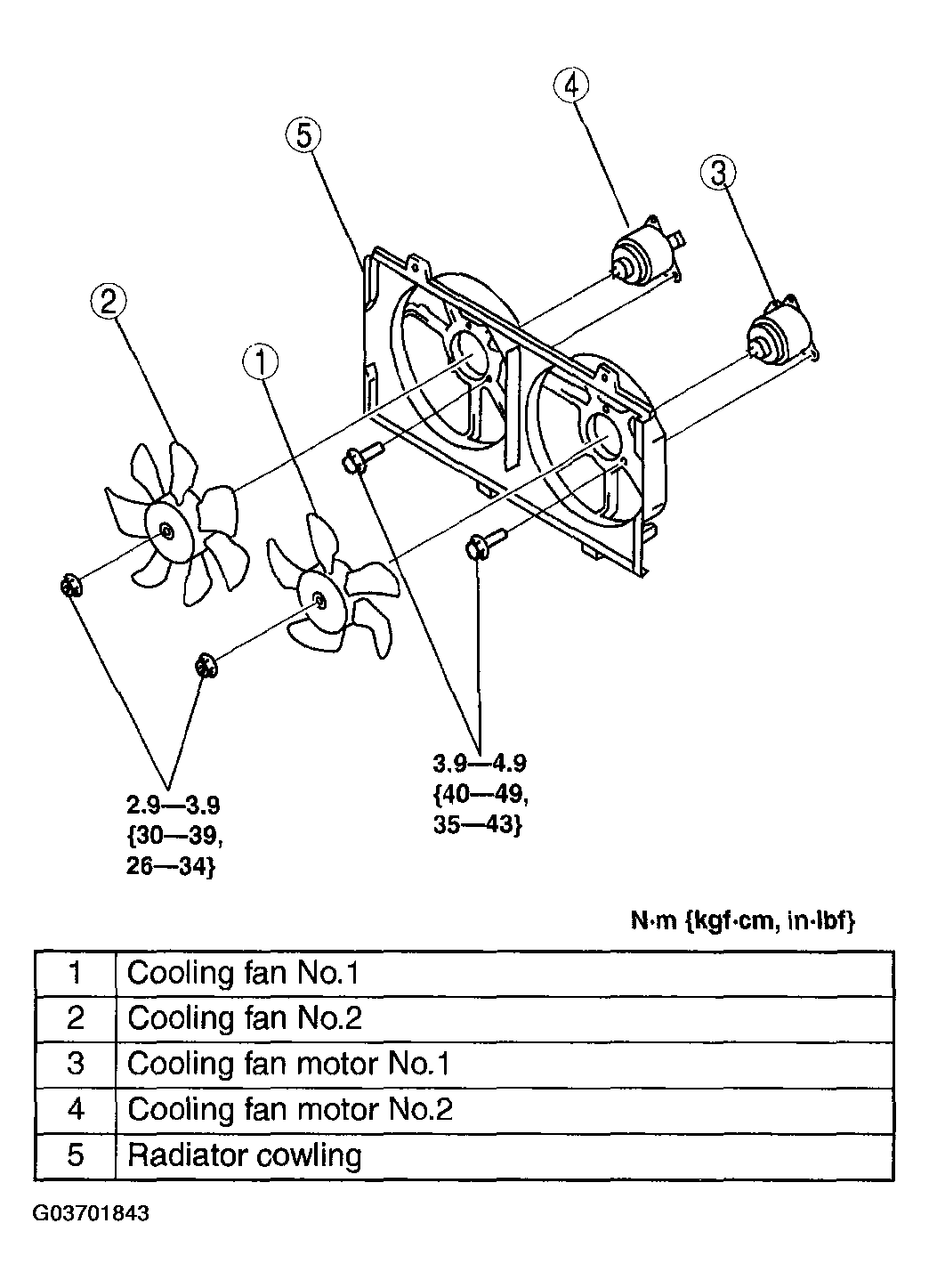

    Fig 1: Exploded View Of Fan Motor With Torque Specifications
    G03701843Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
  11. Add engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  12. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)
