Part Inspection
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Verify that the battery voltage is 12 V .

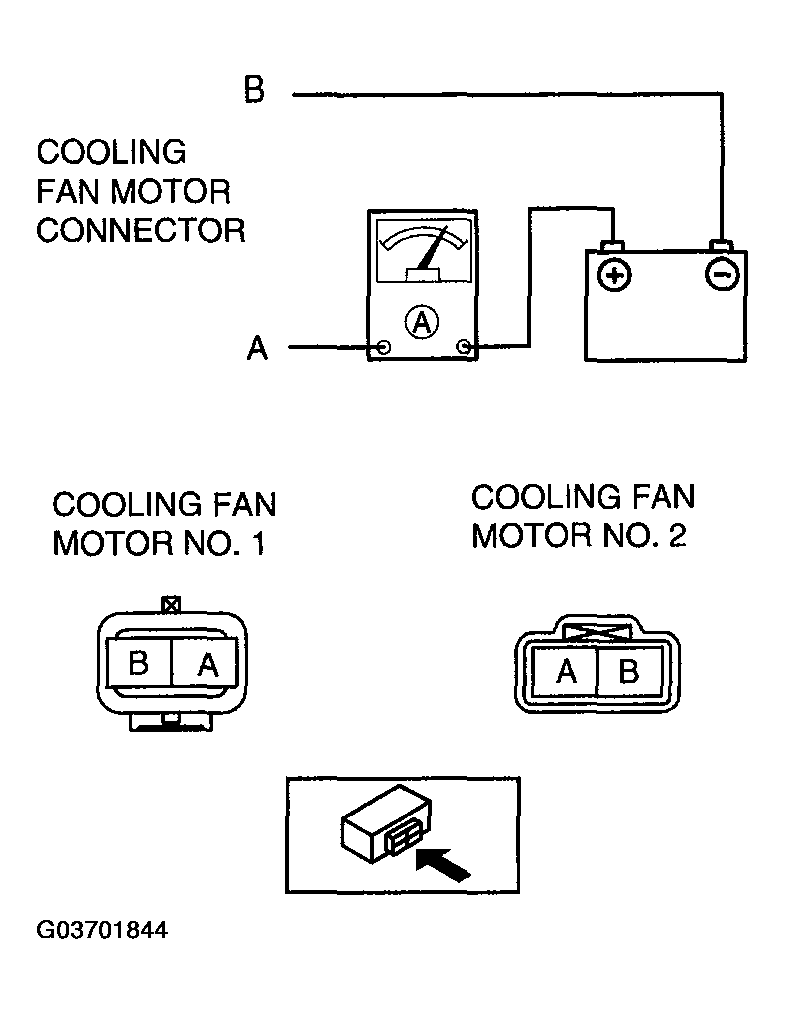

- Install a tester and battery to the cooling fan motor connector as shown in the figure.
- Verify that each fan motor operates smoothly at the standard current.
- If there is any malfunction, replace the applicable part.
VOLTAGE REFERENCEItem Current (A) Cooling fan No.1 8.9-11.9 Cooling fan No.2 4.0-7.0
