Front Fender Panel Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the door garnish. (See DOOR GARNISH REMOVAL/INSTALLATION .)
  4. Remove the front side turn light. (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.

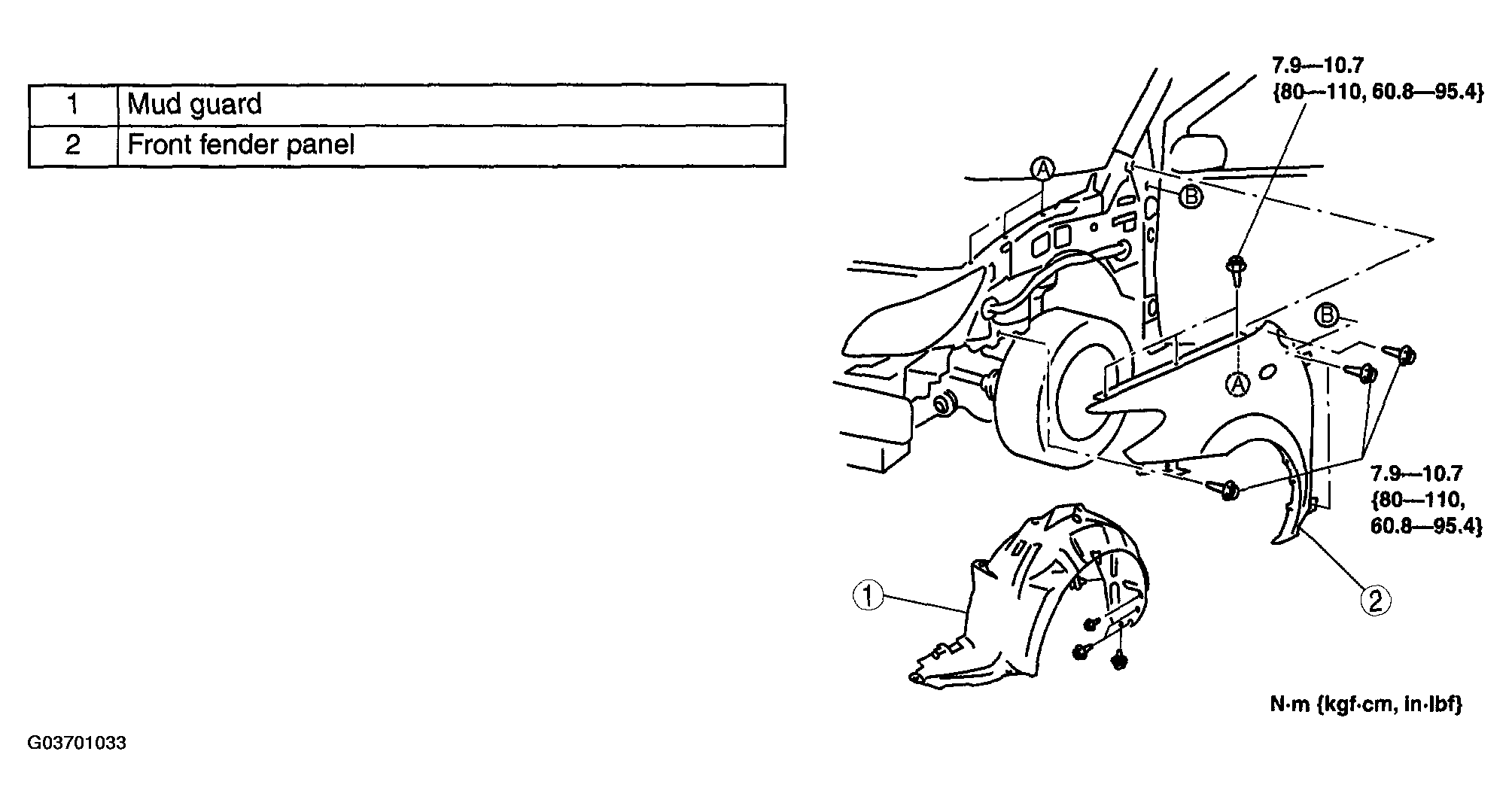

    Fig 1: Removing Front Fender Panel - With Torque Specification
    G03701033Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
