Air Mix Wire

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Set the temperature control dial at MAX HOT.
Set the air mix link to MAX HOT in the direction shown by the arrow and insert a screwdriver at the set hole.
Connect the air mix wire to air mix link.
Clamp the air mix wire to wire clamp.
Verify that the temperature control dial moves its full stroke.

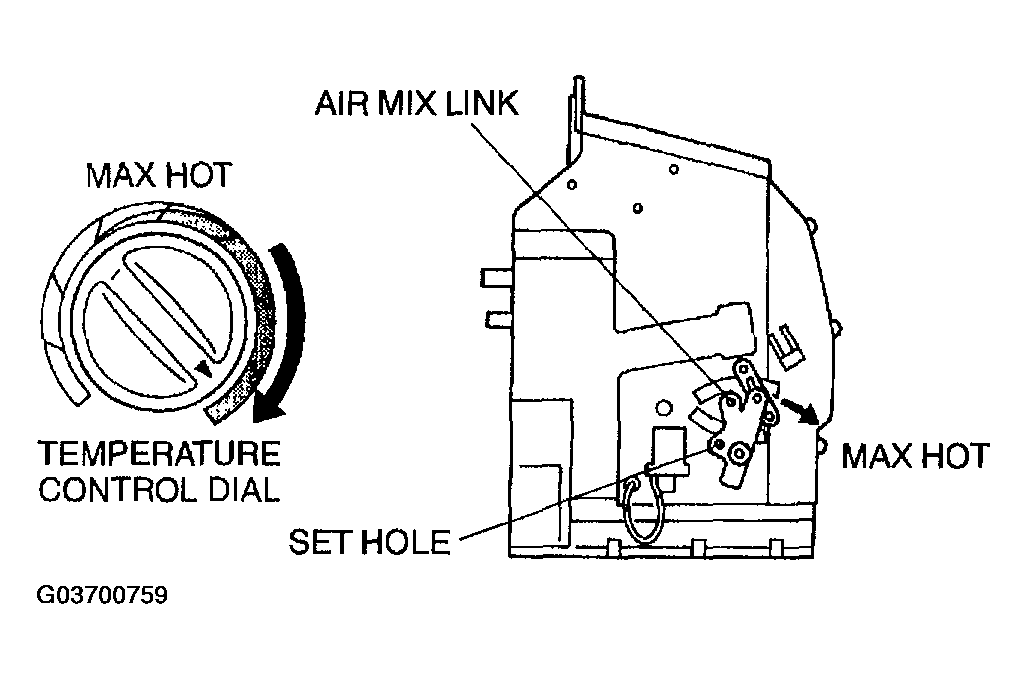

Fig 1: Adjusting Front Climate Control Unit Air Mix Wire
Courtesy of MAZDA MOTORS CORP.
