Brake Pedal Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the brake switch connector.
Remove in the order indicated in the table.

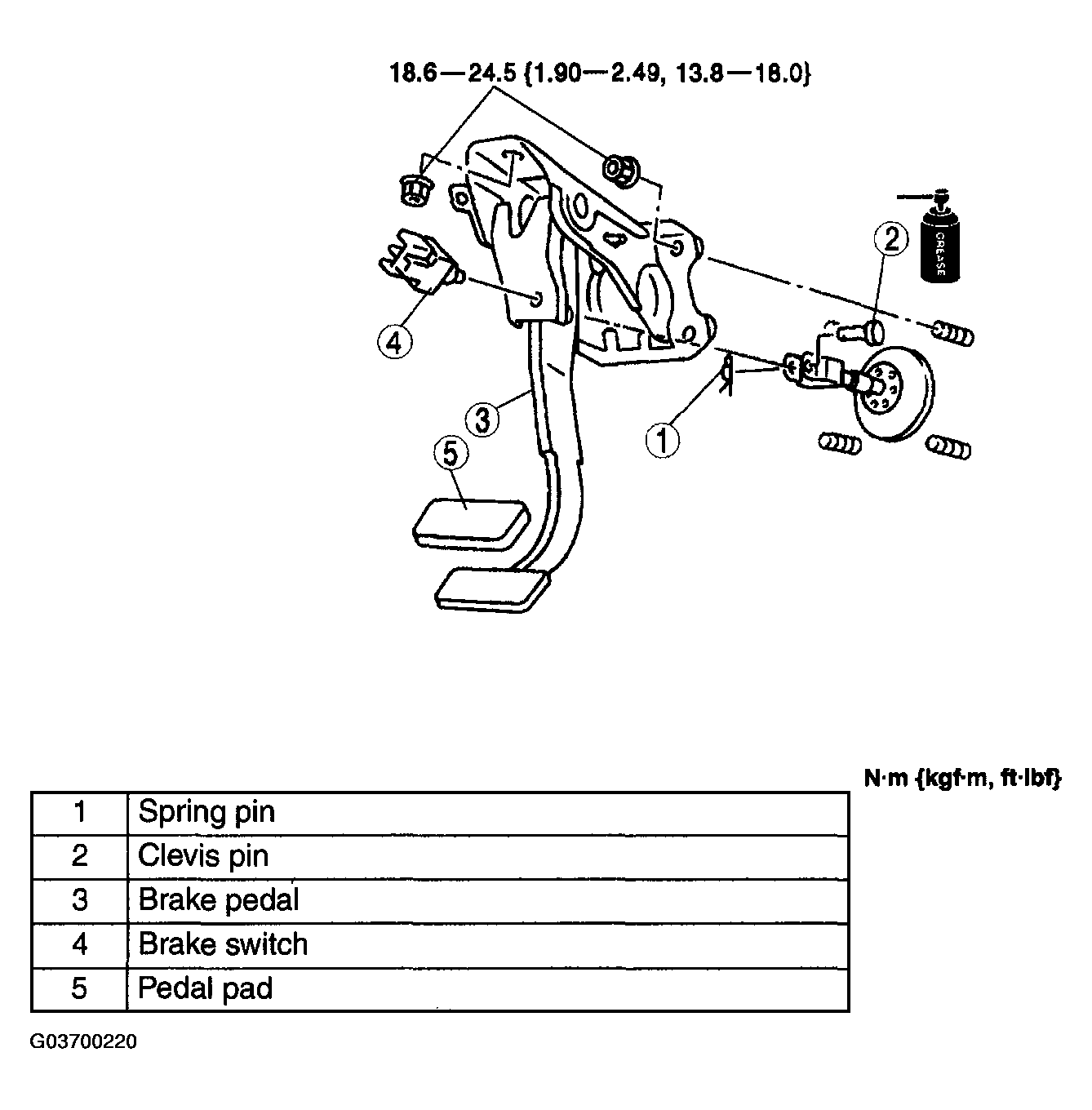

Fig 1: Removing Brake Pedal In Sequence - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
