Joint Shaft Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Assemble in the order indicated in the table.

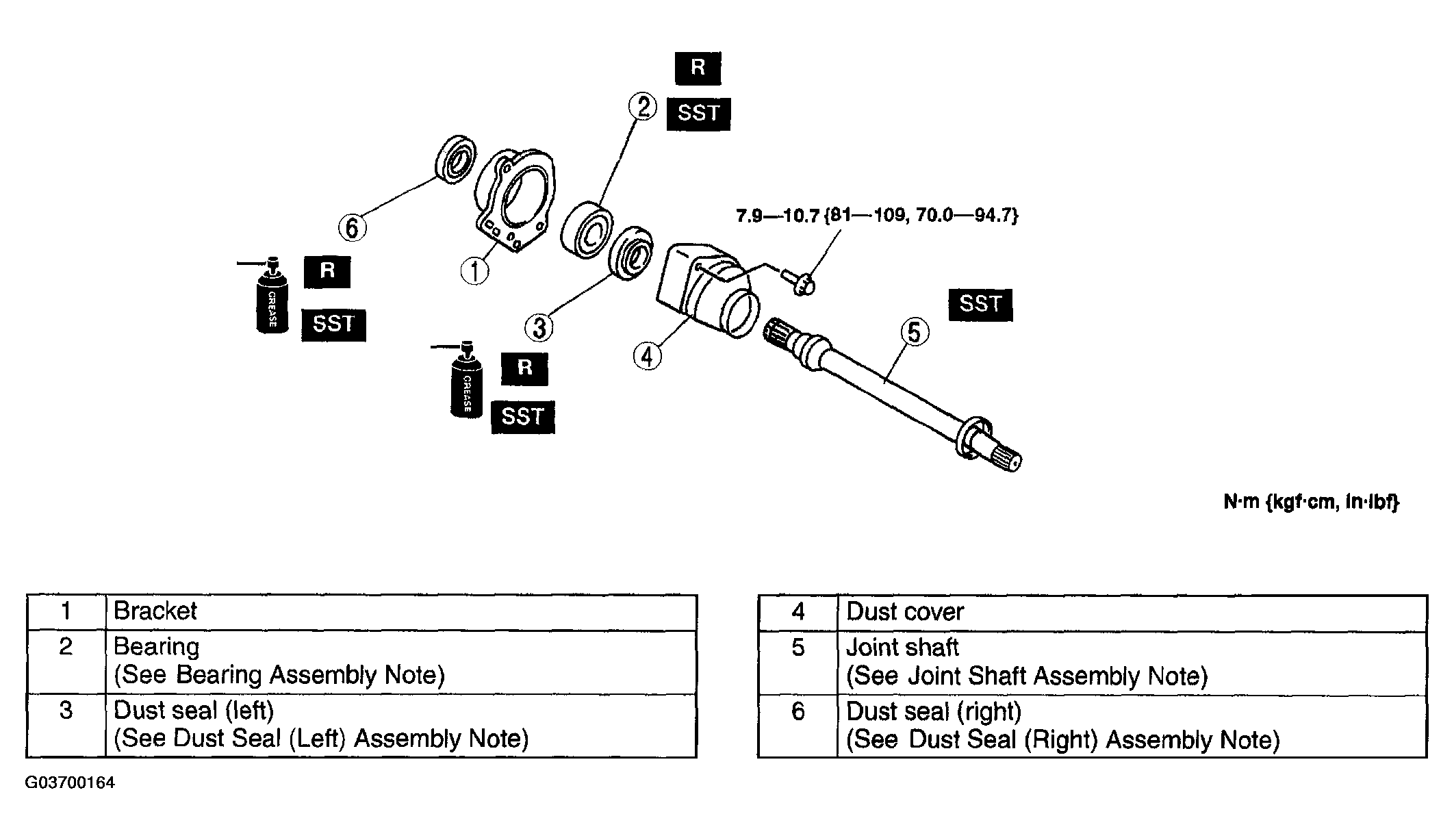

Fig 1: Assembling Joint Shaft In Order
Courtesy of MAZDA MOTORS CORP.
