Dust Cover Installation Note

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Mark the new dust cover in the same way as the removed one.
Align the marks of the new dust cover and the knuckle.

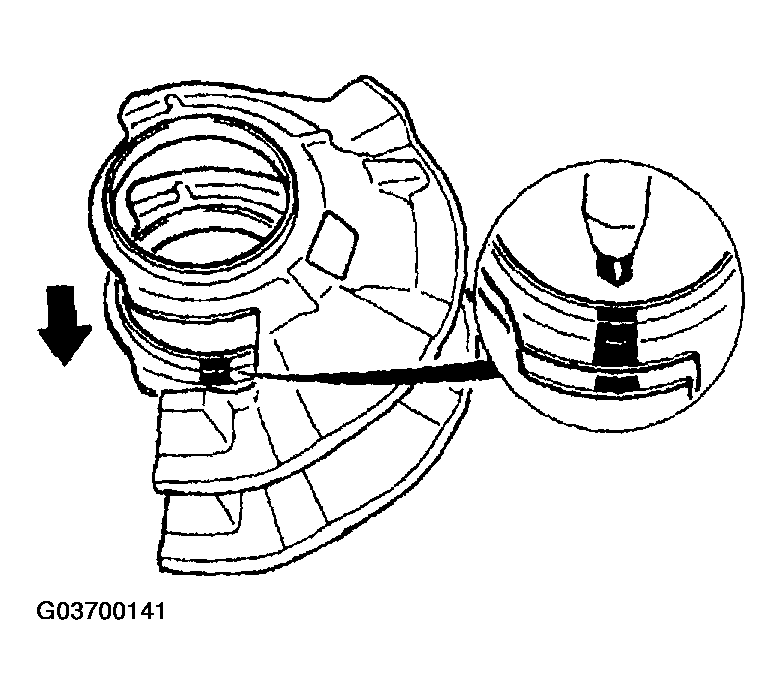

Fig 1: Aligning Marks Of New Dust Cover And Knuckle
Courtesy of MAZDA MOTORS CORP.
Install the new dust cover using the SSTs .

Fig 2: Installing New Dust Cover Using SSTs
Courtesy of MAZDA MOTORS CORP.
