Engine Coolant Level Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the coolant level in the coolant reservoir is between the F and L marks.
- If the engine coolant level is below L, remove the cooling system cap and add coolant. (See COOLING SYSTEM SERVICE WARNINGS .)

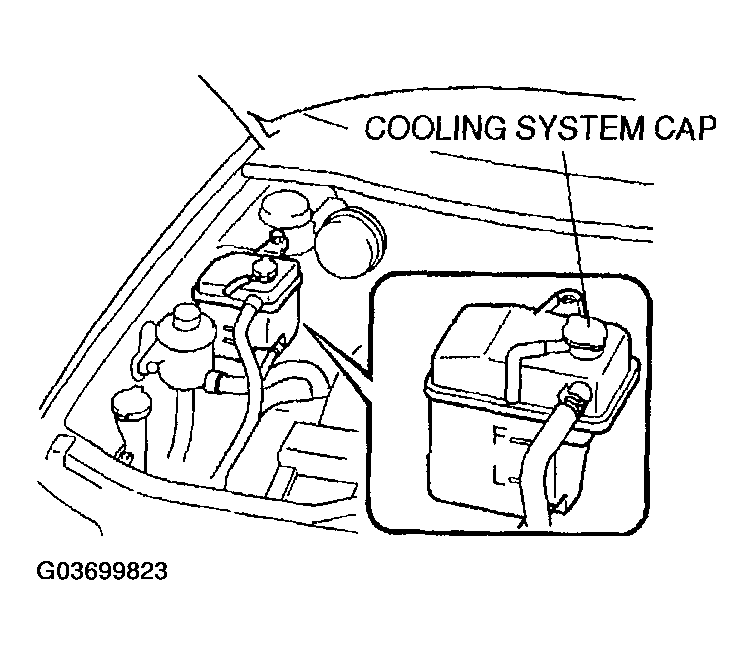

Fig 1: Identifying Cooling System Cap
Courtesy of MAZDA MOTORS CORP.
