Rear Door Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear door trim.
  3. Remove in the order indicated in the table.

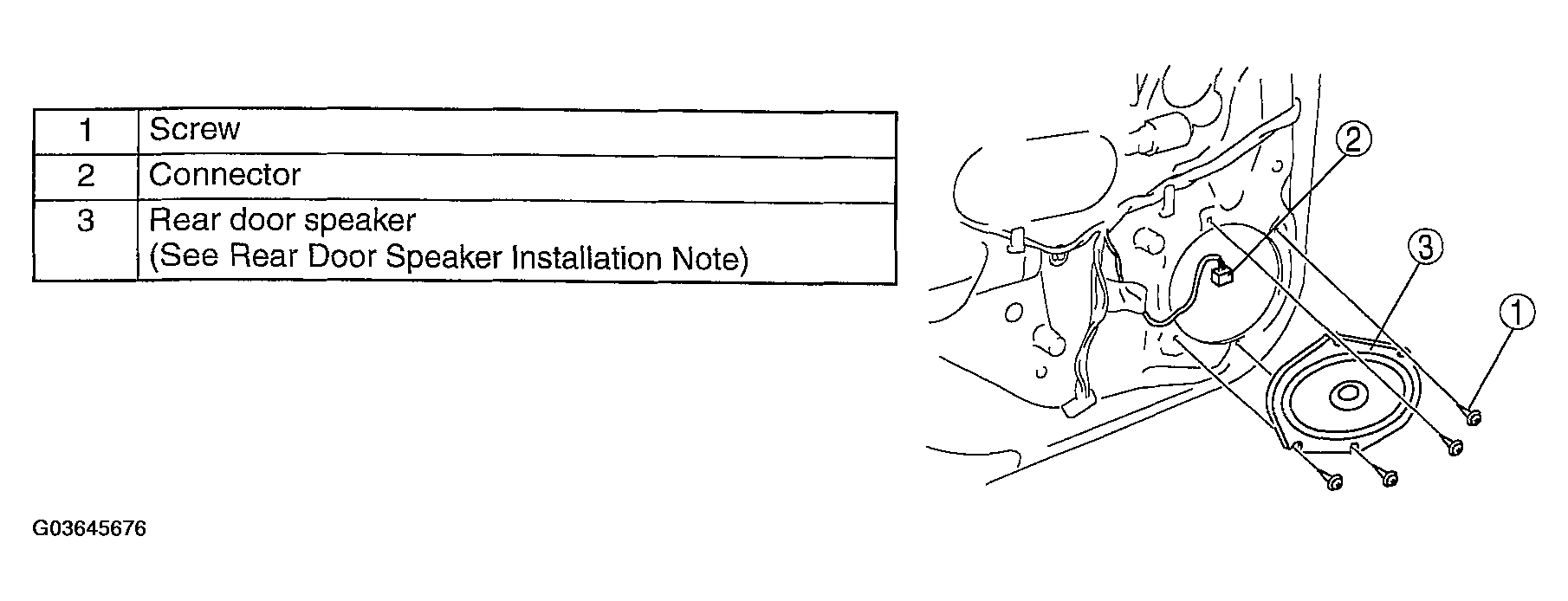

    Fig 1: Rear Door Speaker Removal Sequence
    G03645676Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
