Recliner Motor Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver's side front seat. (See FRONT SEAT REMOVAL/INSTALLATION )
Remove the front cover (No. 1, No. 2) and side cover. (See FRONT SEAT DISASSEMBLY/ASSEMBLY )
Remove in the order indicated in the table.

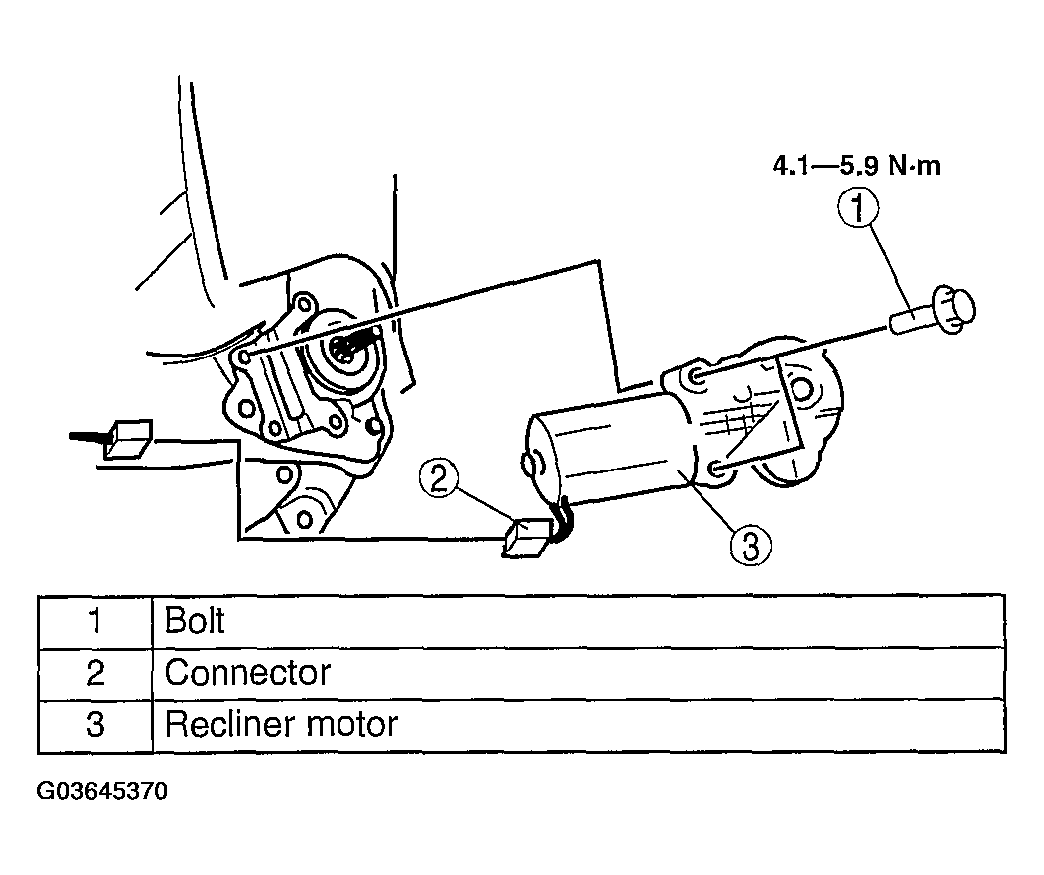

Fig 1: Recliner Motor Removal Sequence (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
