Power Seat Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the power seat switch connector.
Disconnect the rear tilt motor connector.
Inspect for continuity between the power seat switch connector terminals using an ohmmeter.
- If not as specified, replace the power seat switch.

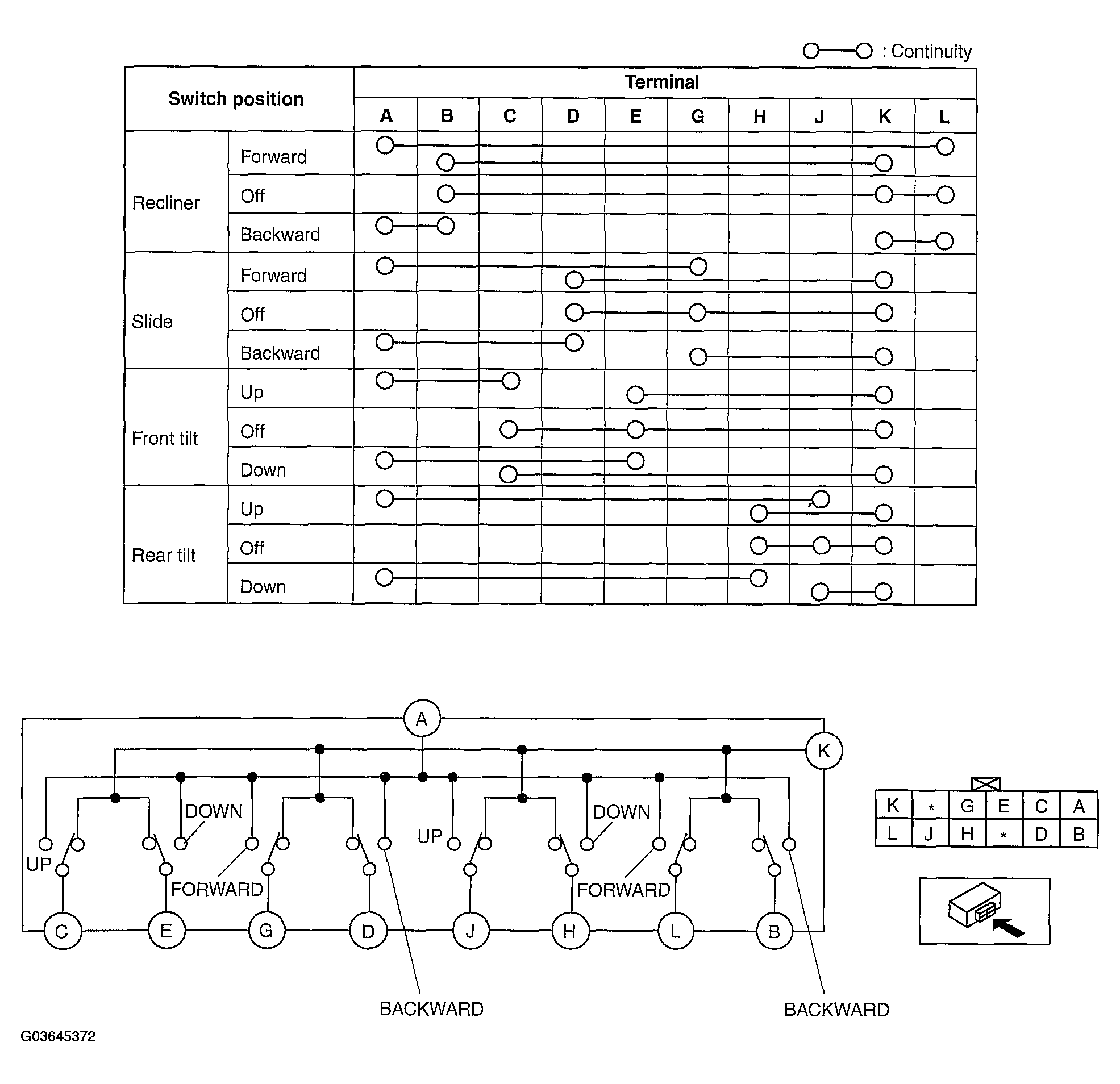

  Fig 1: Power Seat Switch Circuit Diagram, Connector Terminals And Continuity Table
  Courtesy of MAZDA MOTORS CORP.
