Front Seat Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SAFETY PRECAUTIONS before handling the front seat (with a side air bag).
  1. Disconnect the negative battery cable and wait for more than 1 minute  .
  2. Remove the side air bag module. (See SIDE AIR BAG MODULE .)
  3. Disassemble in the order indicated in the figure.
  4. Assemble in the reverse order of disassembly.

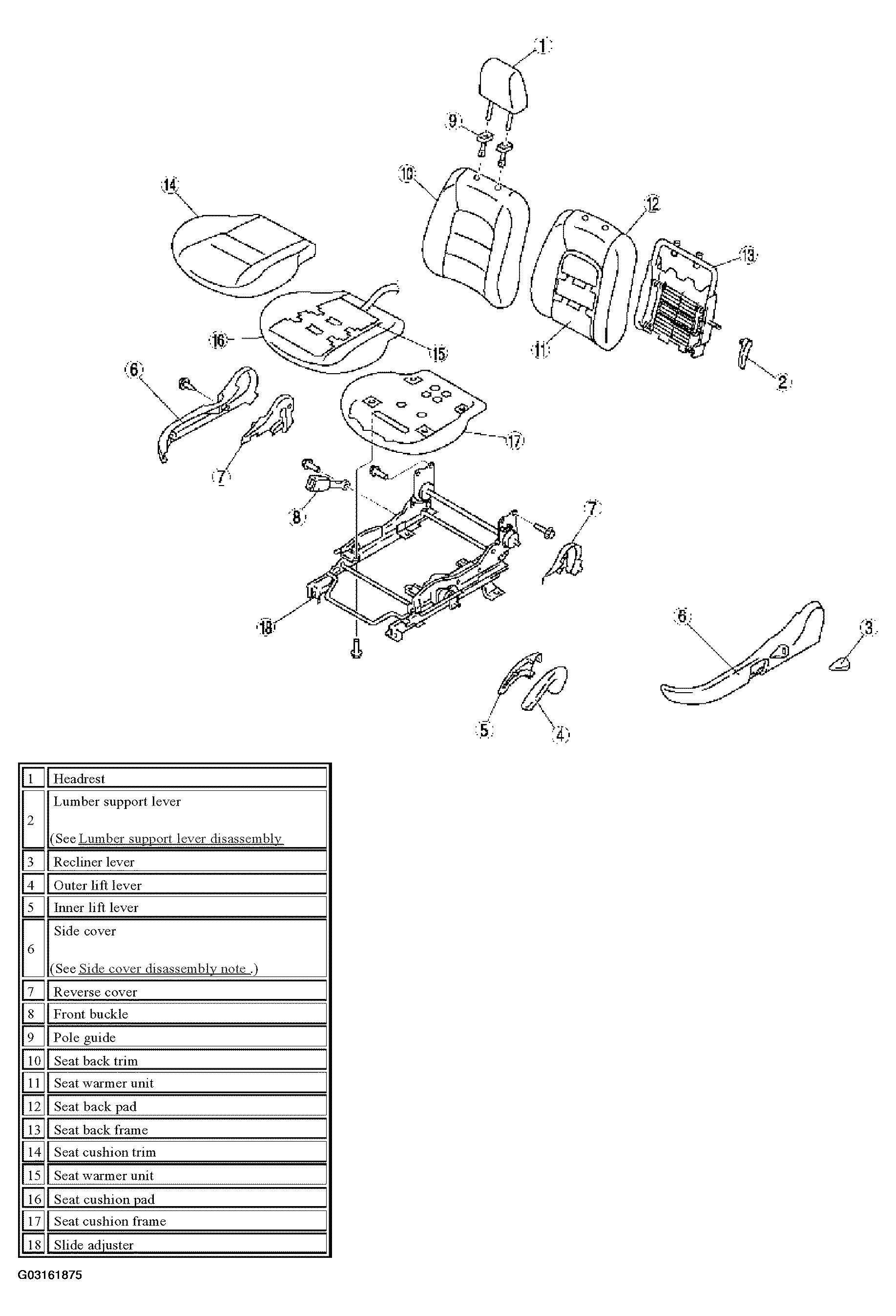

Fig 1: Exploded View Of Driver's Seat (Normal Seat)
G03161875Courtesy of MAZDA MOTORS CORP.

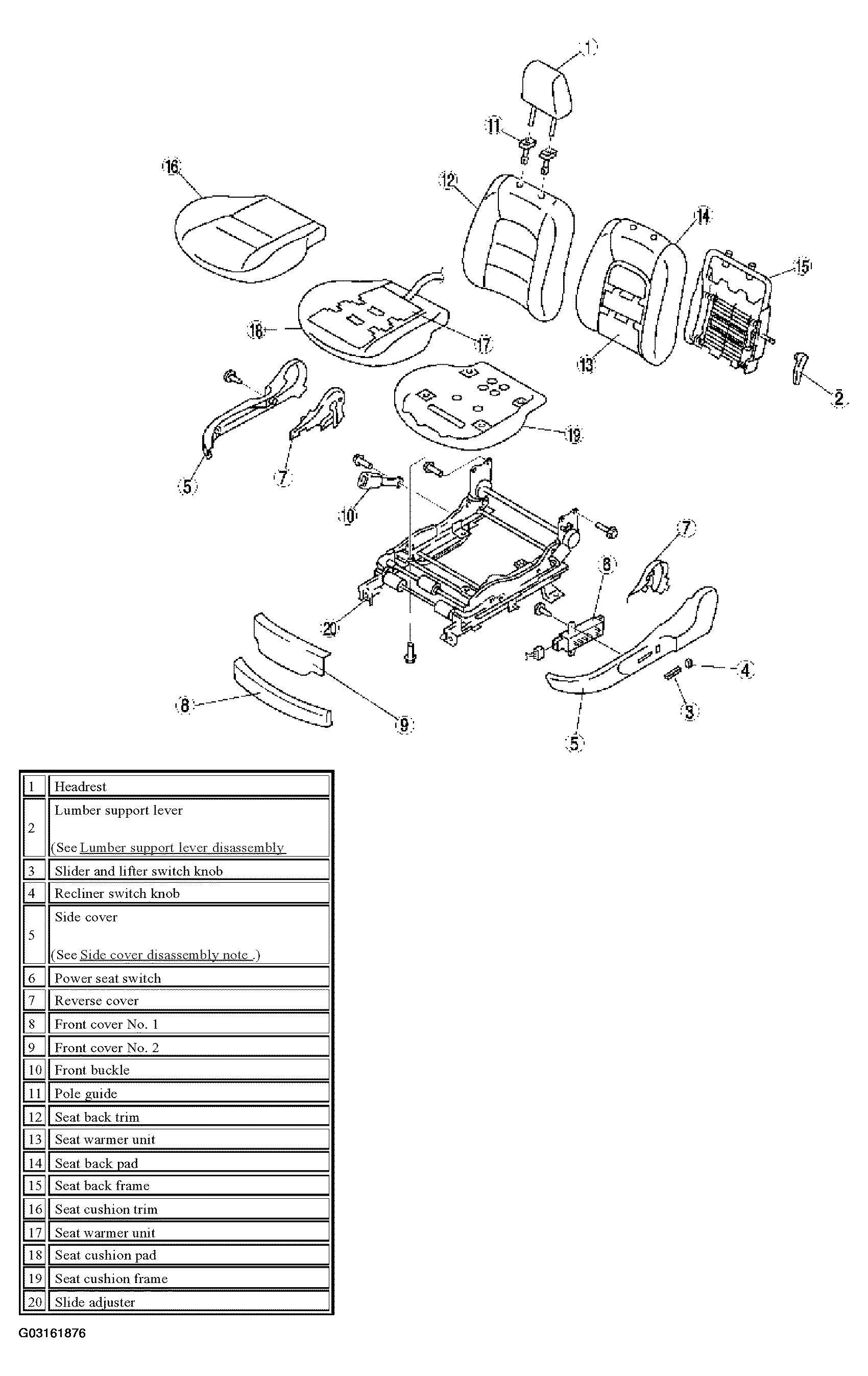

Fig 2: Exploded View Of Driver's Seat (Power Seat)
G03161876Courtesy of MAZDA MOTORS CORP.

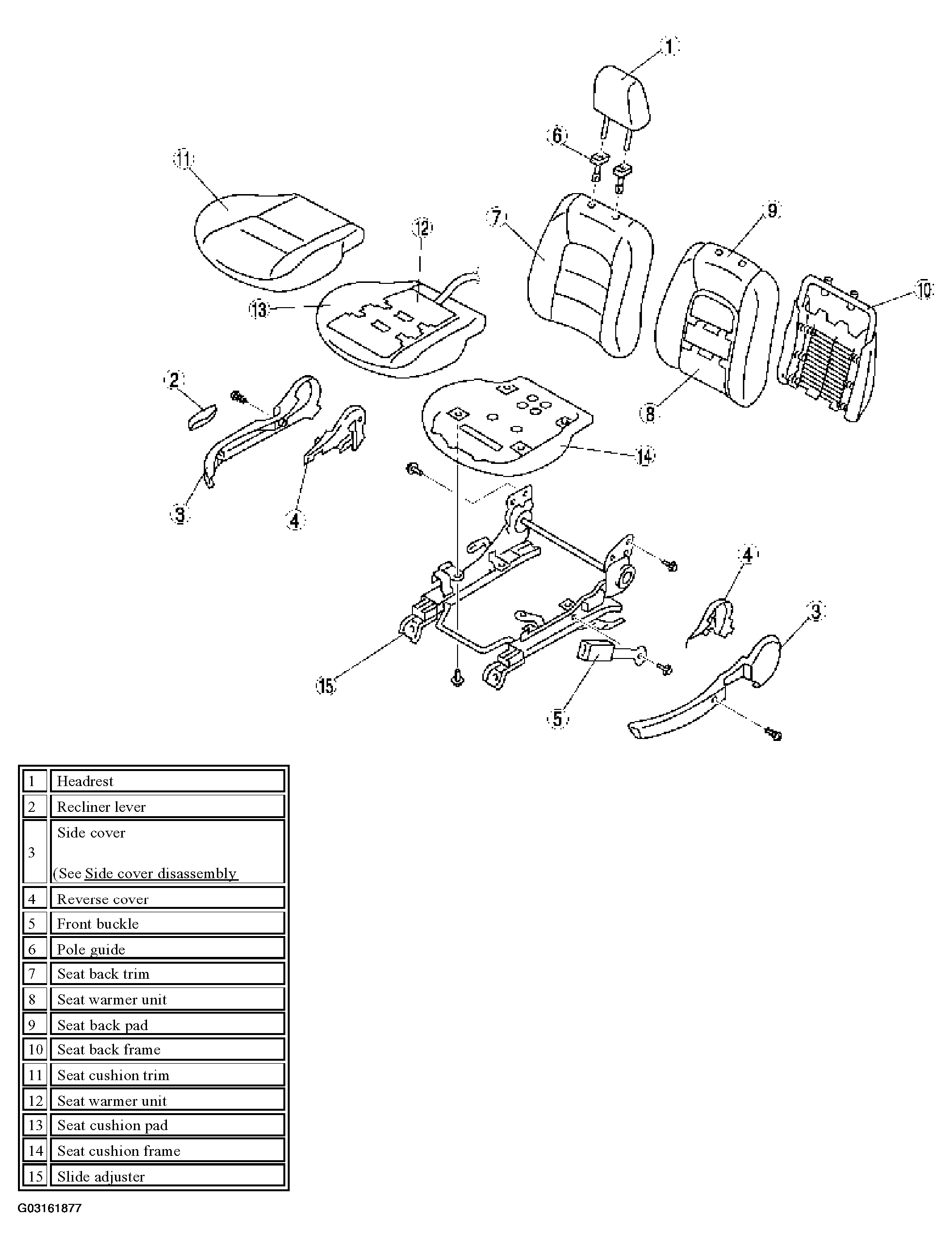

Fig 3: Exploded View Of Passenger's Seat
G03161877Courtesy of MAZDA MOTORS CORP.
