Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to BATTERY DISCONNECT .

Fig 1: Removing Upper Steering Column Shroud
Courtesy of MAZDA MOTORS CORP.
Remove the upper steering column shroud.

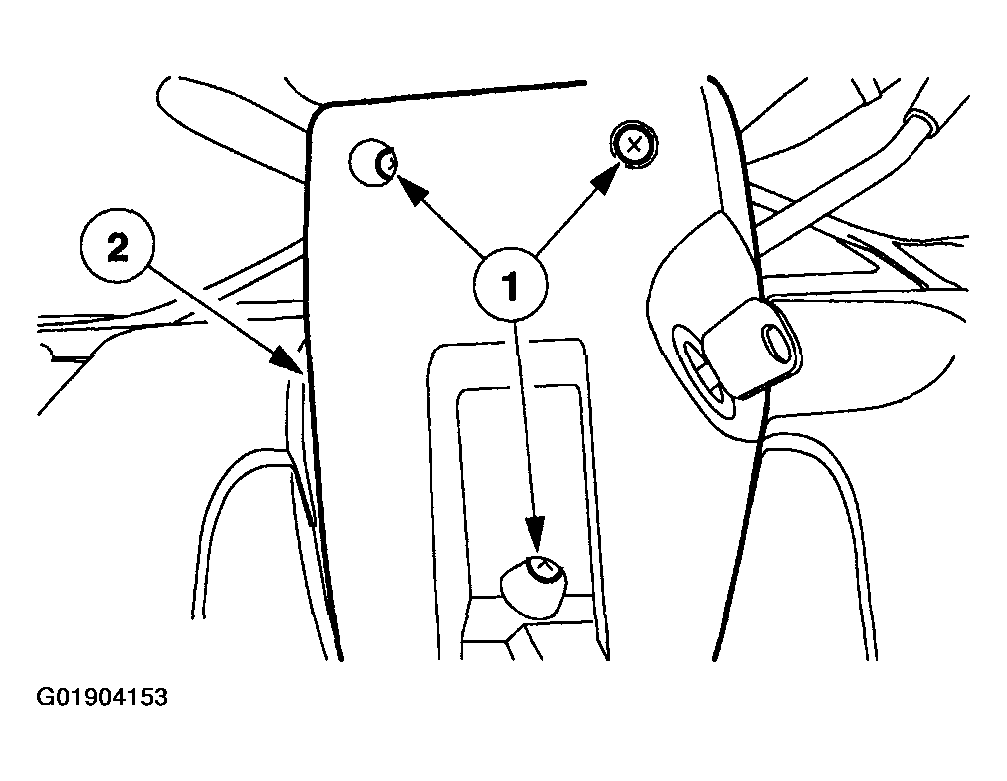

Fig 2: Removing Lower Steering Column Shroud
Courtesy of MAZDA MOTORS CORP.
Remove the lower steering column shroud.
1. Remove the screws.
2. Remove the lower steering column shroud.

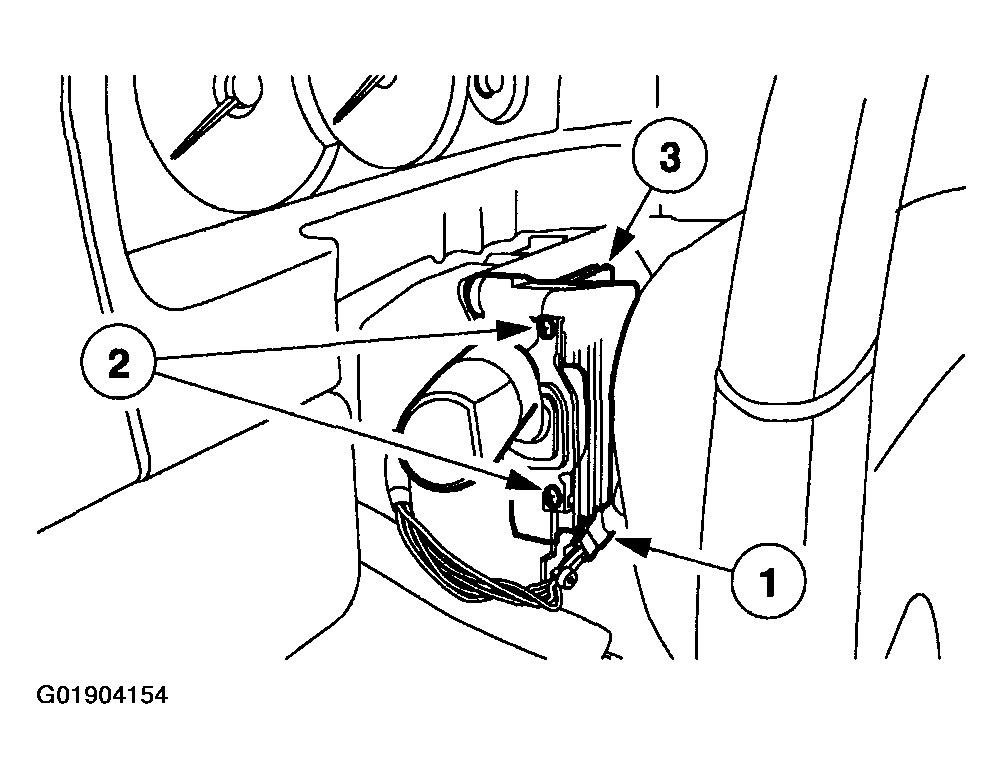

  Fig 3: Removing Multifunction Switch
  Courtesy of MAZDA MOTORS CORP.
Remove the multifunction switch.
1. Disconnect the electrical connector.
2. Remove the screws.
3. Remove the multifunction switch.
To install, reverse the removal procedure.
