Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Make sure that the headlamp switch and the ignition switch are in the OFF position.

Remove the front bumper cover. Refer to FRONT BUMPER COVER .

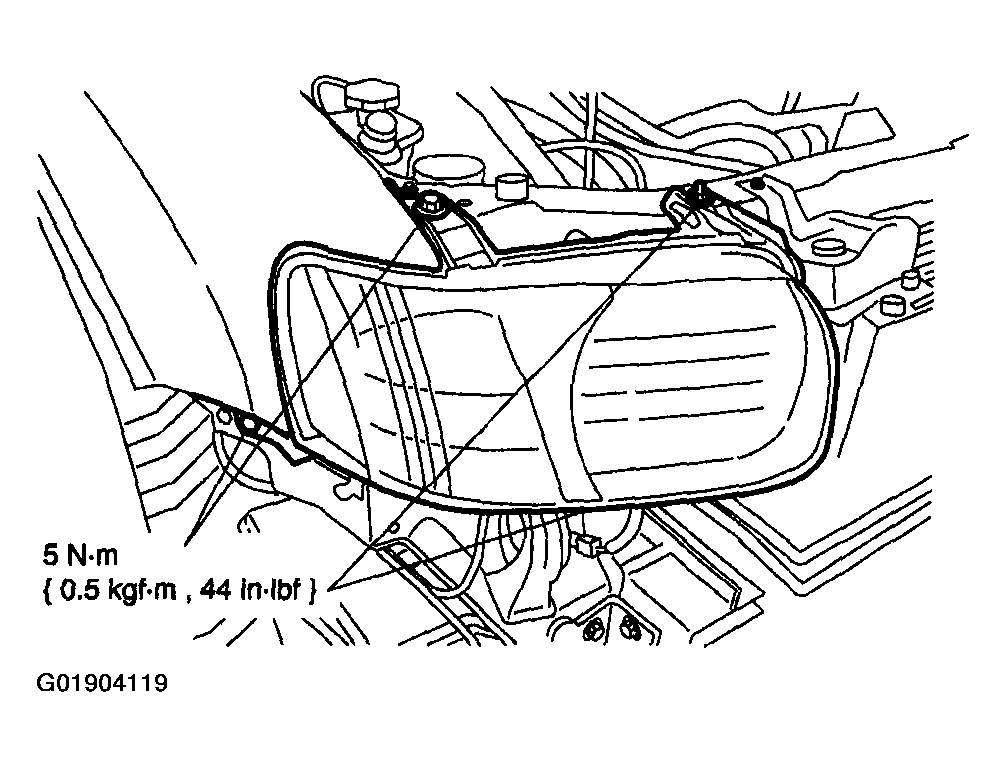

Fig 1: Removing Headlamp Assembly
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Pull headlamp assembly forward to access electrical connectors.
Remove the headlamp assembly.
1. Remove the three bolts.
2. Loosen the nut.
  - Disconnect the electrical connectors.
To install, reverse the removal procedure.
- If necessary, adjust the headlamps. For additional information, refer to HEADLAMP ADJUSTMENT - PHOTOMETRIC AIMING , or HEADLAMP ADJUSTMENT - SCREEN METHOD AIMING .
