Description & Operation
WARNING: This page is about a different car, the 2002 Mazda Millenia. However, it is still accessible from the selected car via links, so may be relevant.

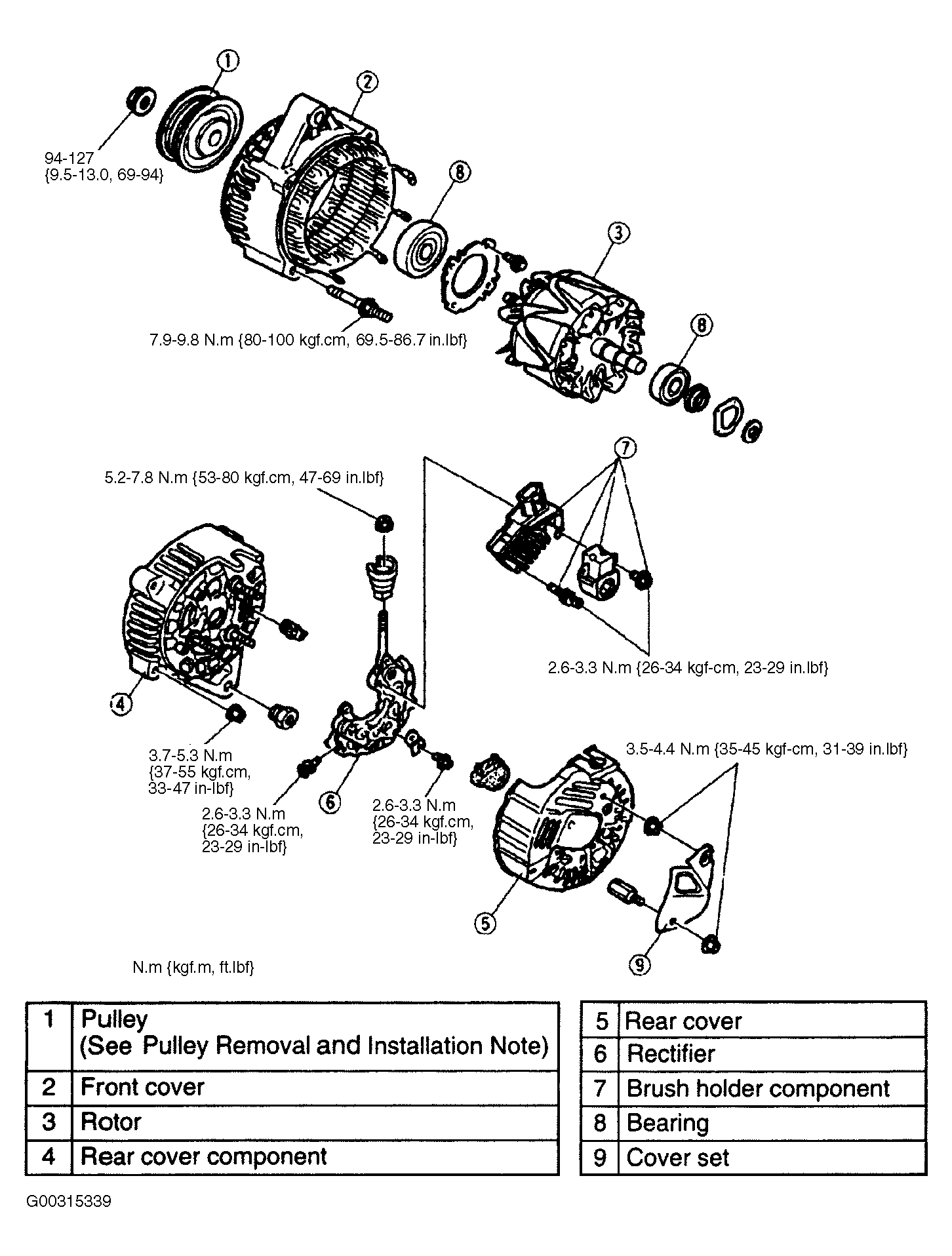

The IC integral regulator charging system and its main components are connected as shown in illustration. See Fig 1 . The regulator is a solid state type and it is mounted along with the brush holder assembly inside the generator installed on the rear end cover. The generator does not require particular maintenance such as voltage adjustment. The rectifier connected to the stator coil has diodes to transform AC voltage into DC voltage. This DC voltage is connected to the output terminal of generator.
The generator generates power to keep battery fully charged
