Front Door Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front door trim.
Remove in the order indicated.

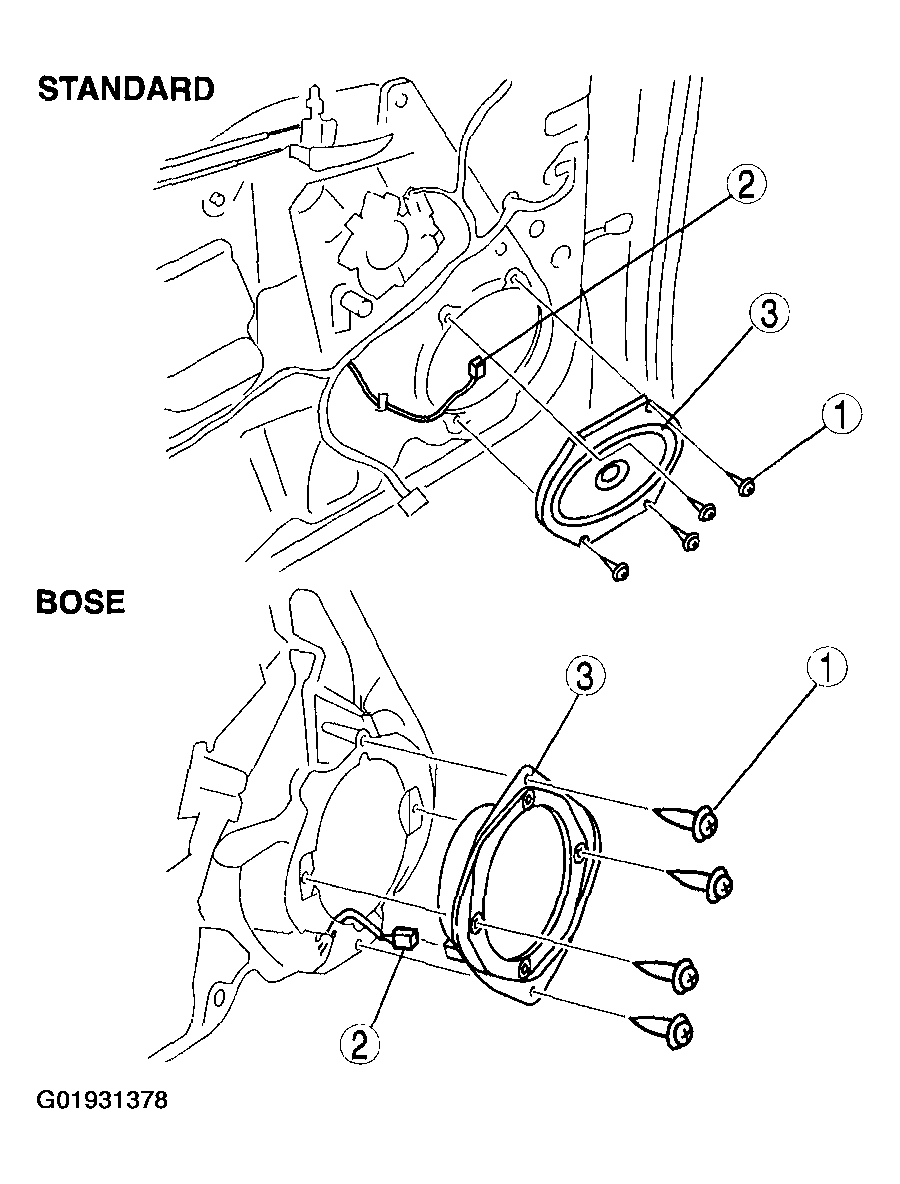

Fig 1: Identifying Front Door Speaker Components (Standard/Bose)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Front Door Speaker Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
