Lower Panel Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hood release lever. (See HOOD RELEASE LEVER REMOVAL NOTE .)
Remove the screws.
Pull the lower panel outward, disengage clips A and tabs B from the dashboard, and remove the lower panel.

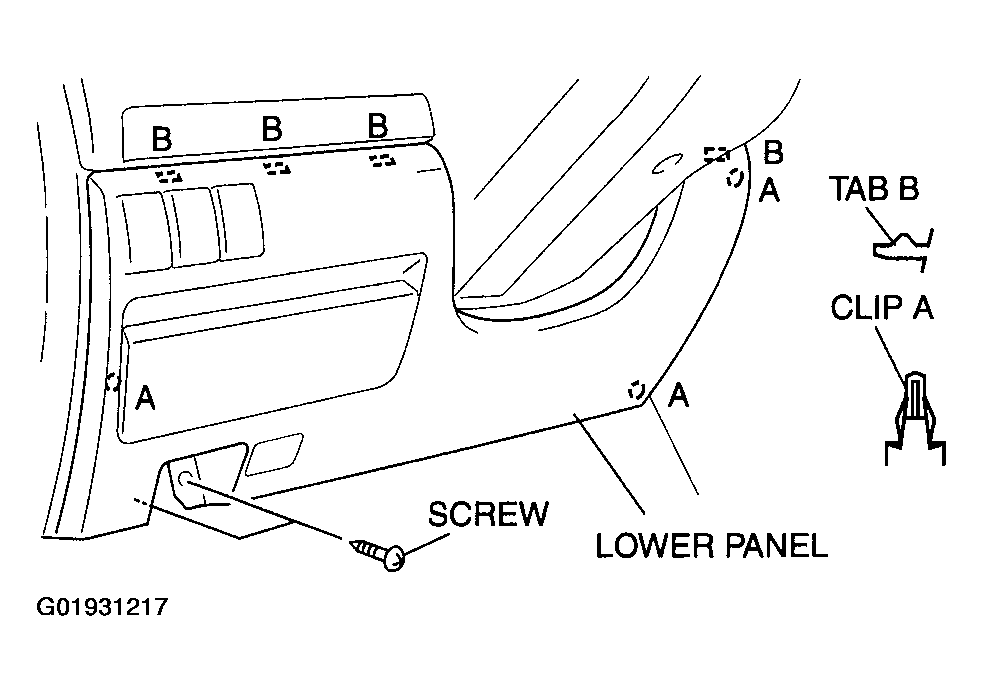

Fig 1: Removing Lower Panel
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
