Front Fender Panel Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fender molding. (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION  .)
  4. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  5. Remove in the order indicated.

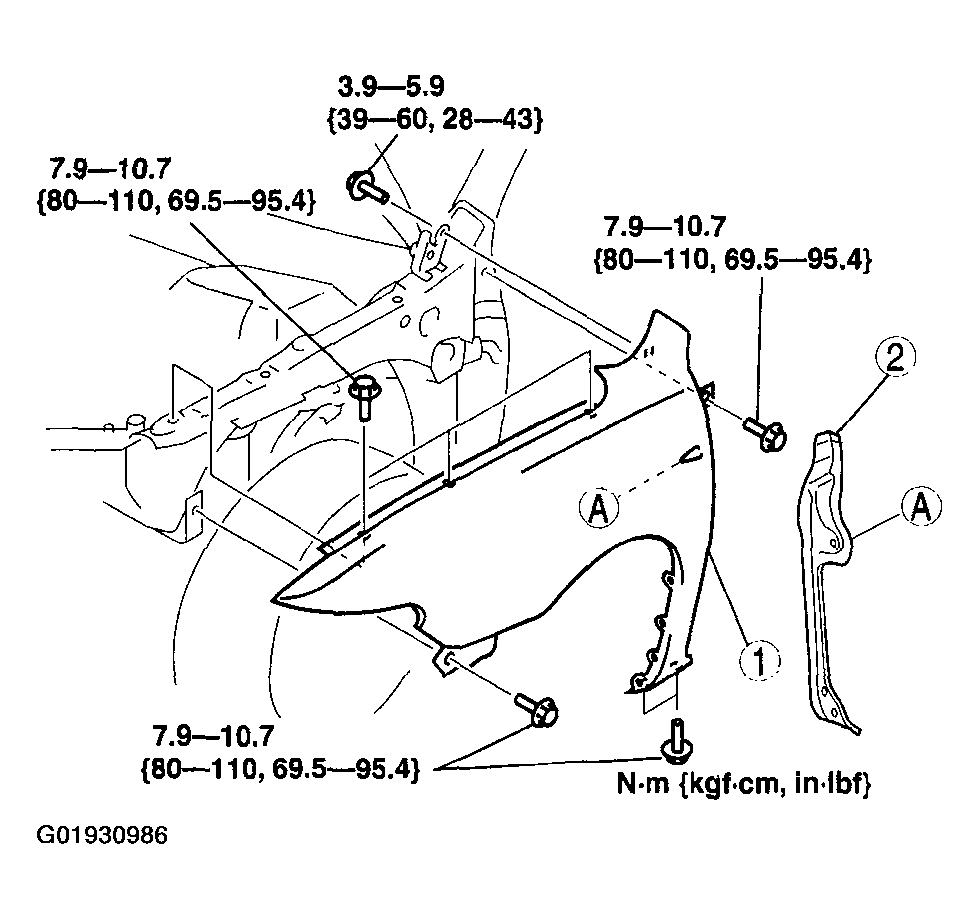

    Fig 1: Identifying Front Fender Panel Components
    G01930986Courtesy of MAZDA MOTORS CORP.
    Fig 2: Front Fender Panel Removal Sequence
    G01930985Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
