Bolt Removal/Installation Note
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

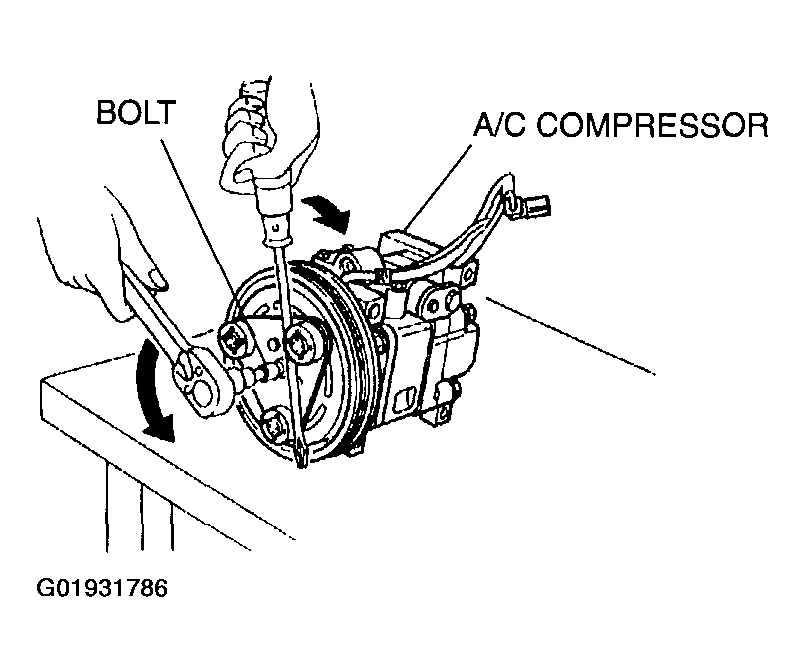

- When removing or installing the bolt, hold the pressure plate in place as shown in Fig 1 .
- When installing a new A/C compressor body, replace the bolt.
