Blower Motor Removal/Installation
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove in the order indicated in the table.

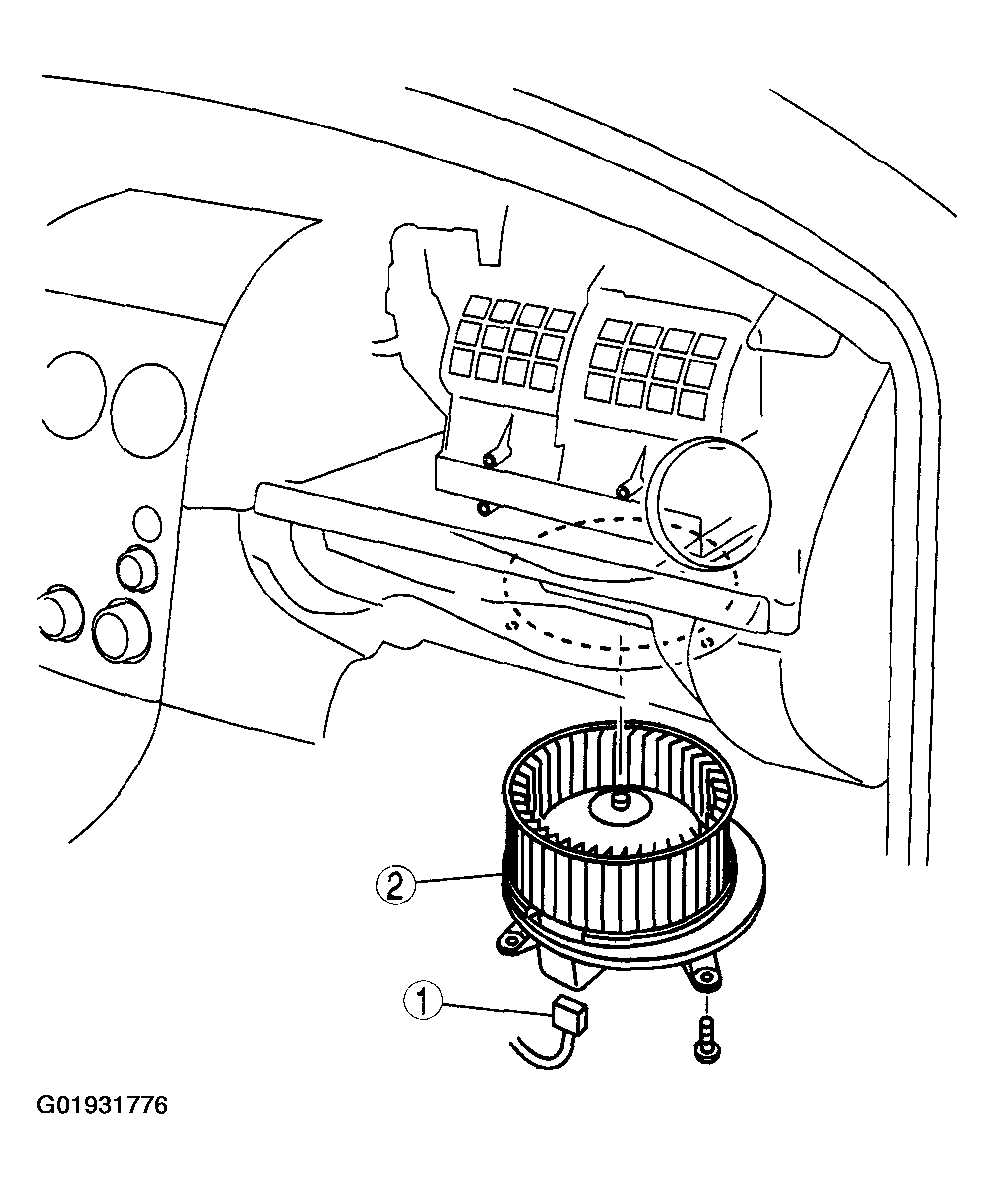

BLOWER MOTOR REMOVAL/INSTALLATION
|
|
| 1 |
Blower Motor Connector |
| 2 |
Blower Motor |
- Install in the reverse order of removal.
