Trunk End Trim Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

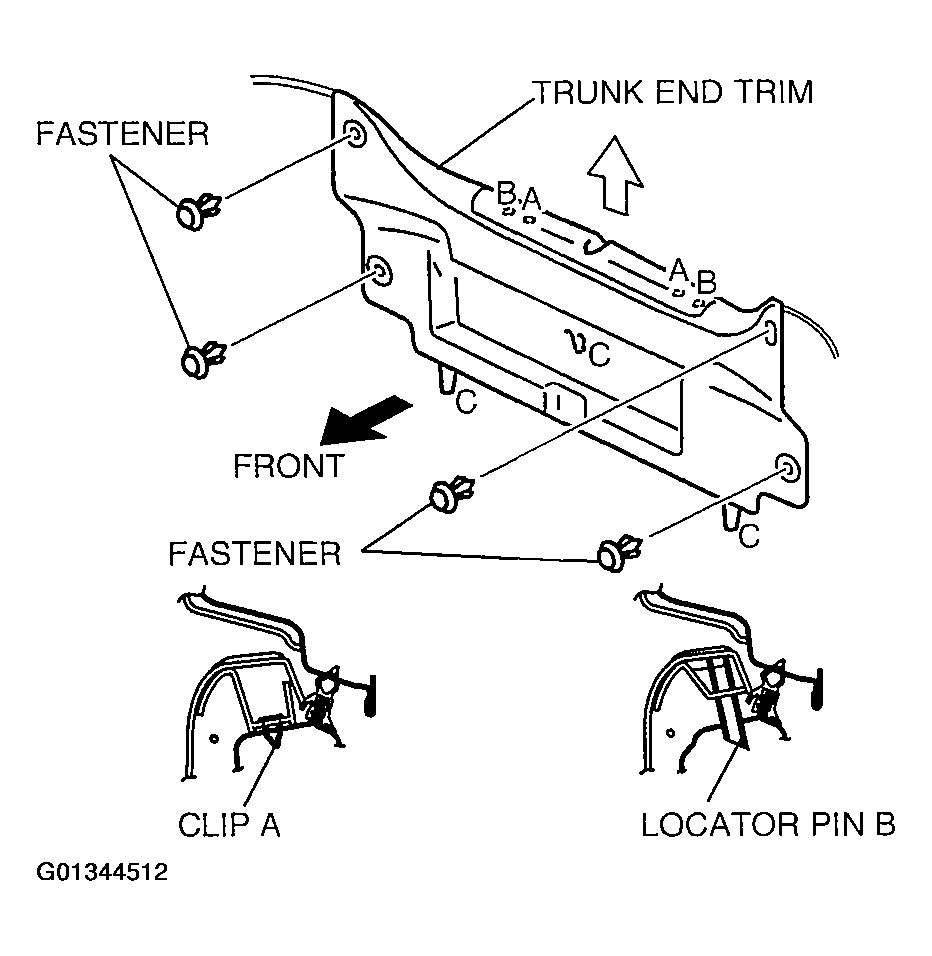

- Remove the fasteners.
- Pull the trunk end trim upward, then detach clips A, locator pins B, and tabs C.
- Remove the trunk end trim.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
