Part Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the battery voltage is 12 V .

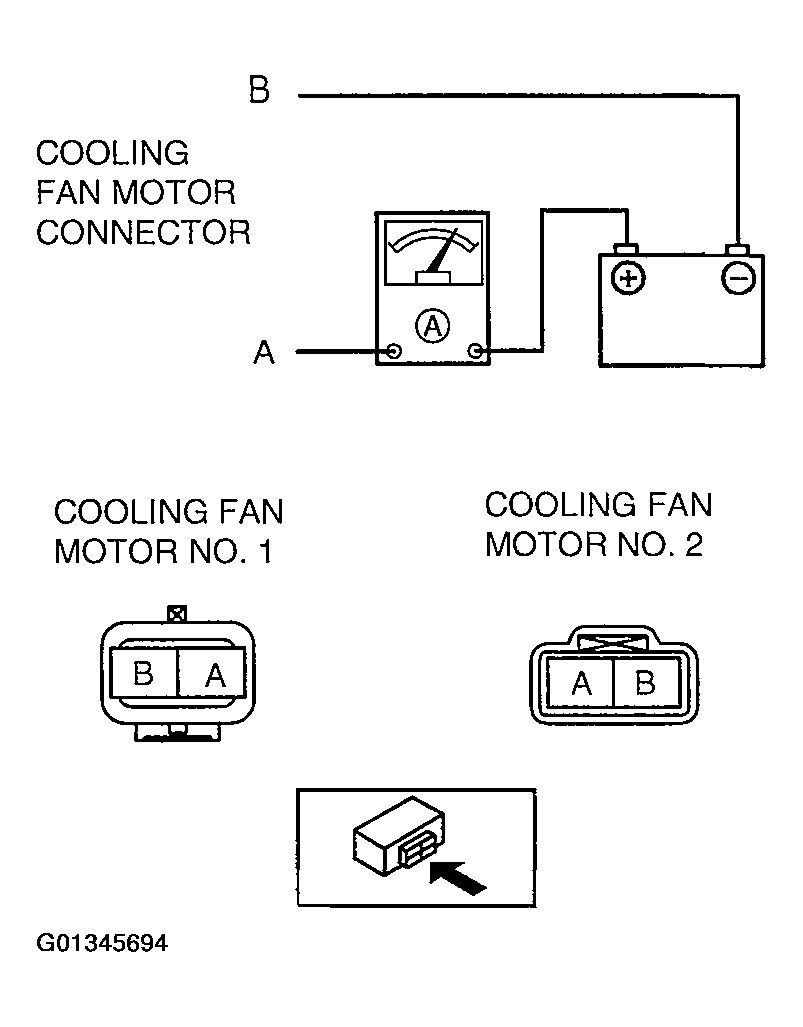

Install a tester and battery to the cooling fan motor connector as shown in the figure.
Verify that each fan motor operates smoothly at the standard current.
- If there is any malfunction, replace the applicable part.
Fig 1: Fan Motor Current Specifications
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Fan Motor Connector Terminals
Courtesy of MAZDA MOTORS CORP.
