Electric Current Value
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If 10 A A/C fuse is often burnt out, the cause may be short circuit in the stator coil. Perform the following inspection.
- Disconnect the magnetic clutch connector.

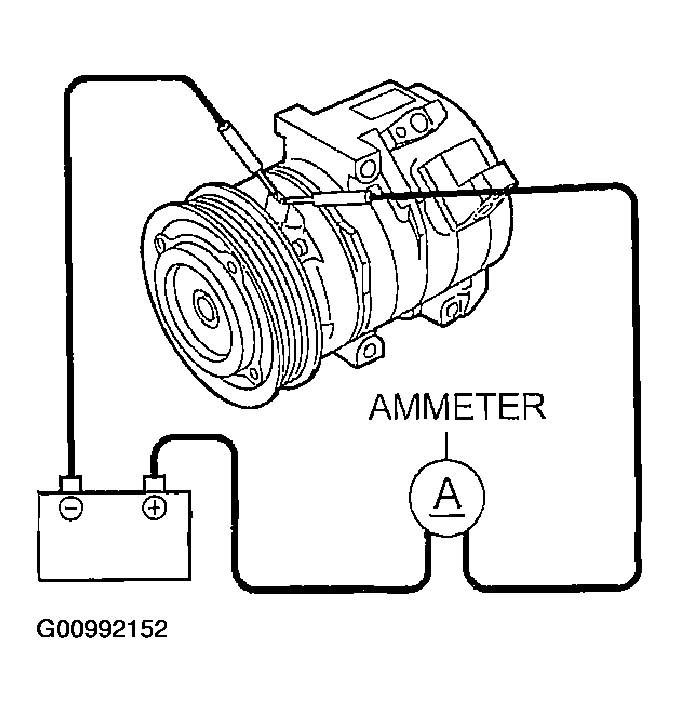

- Connect battery positive voltage and a tester to terminal A and ground to terminal B of the magnetic clutch as shown.
- Verify the electric current value of the stator.
- If there is any malfunction, replace the stator.
Electric current value (approx. quantity)
2.9 A (Normal temperature)
MAX 4.0 or less
