Hood Adjustment: Notes
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

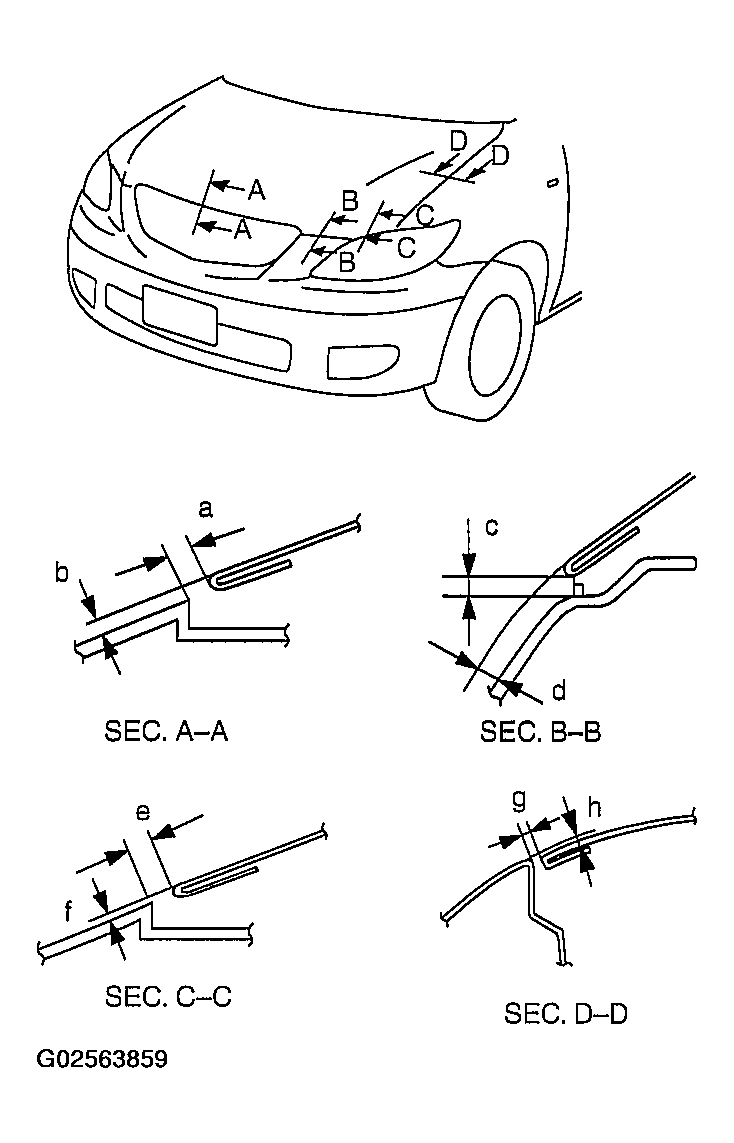

- Measure the gap and height between the hood and the body.
- If not as specified, adjust the gap and height. (See Gap Adjustment .) (See Height Adjustment .)
Clearance (Standard)
- a: 2.3-6.7 mm {0.10-0.26 in}
- b: -1.2-3.2 mm {-0.05-0.12 in}
- c: 3.5-6.5 mm {0.14-0.25 in}
- d: -1.85-2.65 mm {-0.08-0.10 in}
- e: 2.3-6.7 mm {0.10-0.26 in}
- f: -0.55-2.45 mm {-0.03-0.09 in}
- g: 2.7-4.7 mm {0.11-0.18 in}
- h: -1.0-1.0 mm {-004-0.04 in}
Clearance (Sports)
- a: 2.3-6.7 mm {0.10-0.26 in}
- b: -1.4-3.0 mm {-0.06-0.11 in}
- c: 3.65-6.65 mm {0.15-0.26 in}
- d: -1.85-2.65 mm {-0.08-0.10 in}
- e: 2.3-6.7 mm{0.09-0.26 in}
- f: -0.55-2.45 mm{-0.03-0.09 in}
- g: 2.7-4.7 mm {0.11-0.18 in}
- h: -1.0-1.0 mm {-004-0.04 in}
