Front Fender Panel Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove the door garnish. (See DOOR GARNISH REMOVAL/INSTALLATION .)
Remove the front side turn light. (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Removal Order Of Front Fender Panel

1 Mud guard

2 Front fender panel
Install in the reverse order of removal.

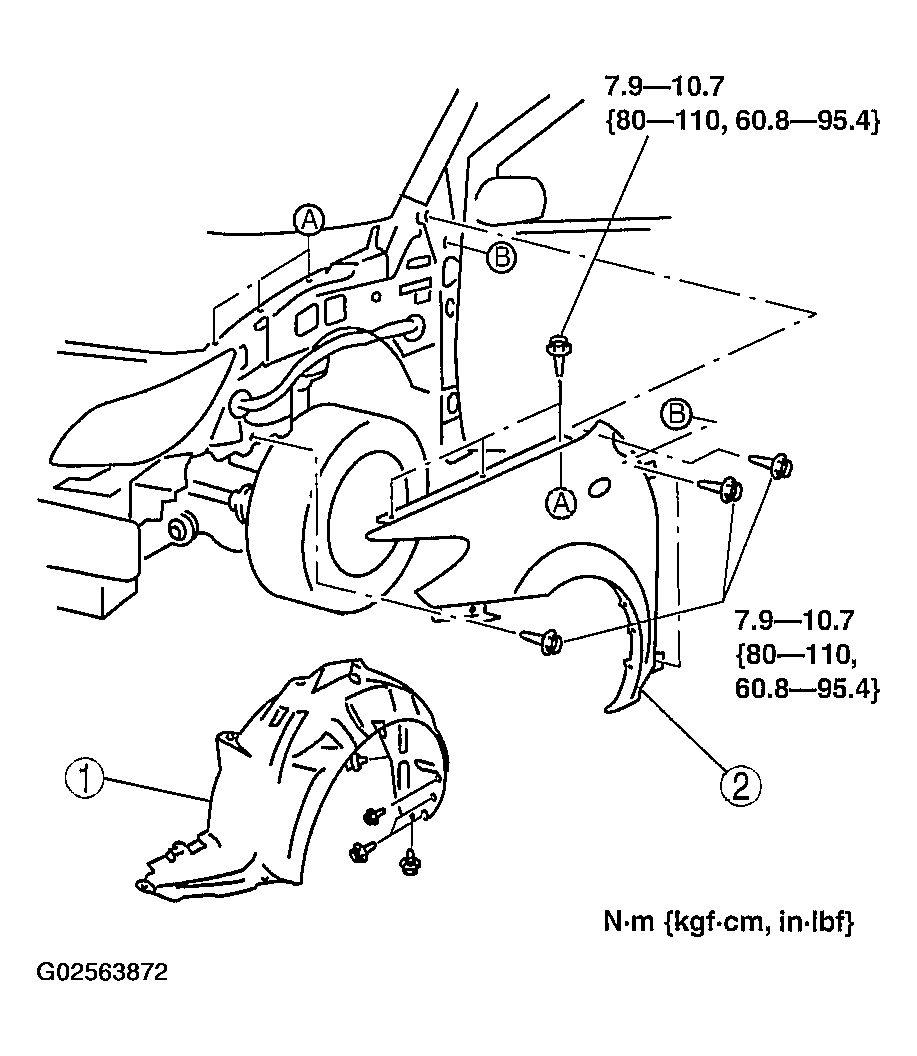

Fig 1: Removing/Installing Front Fender Panel
Courtesy of MAZDA MOTORS CORP.

1	Mud guard
2	Front fender panel
