Front Bumper Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

Fig 1: Disassembling/Assembling Front Bumper - Standard

Courtesy of MAZDA MOTORS CORP.

DISASSEMBLING ORDER OF FRONT BUMPER - SPORTS

1	Front fog light hole cover
2	Front bumper fascia
3	Screw

Assemble in the reverse order of disassembly.

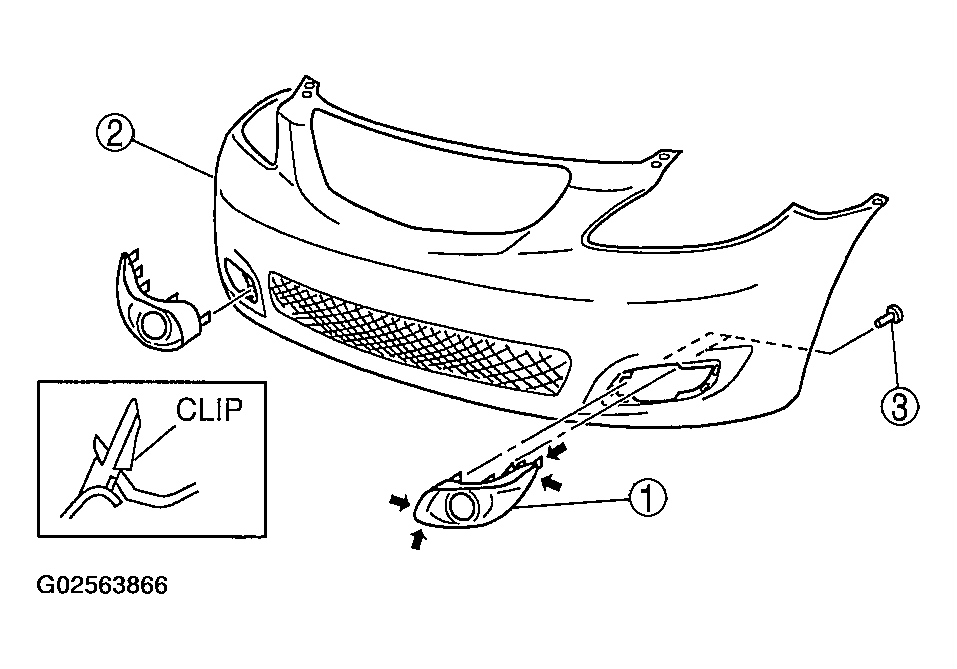

Fig 2: Disassembling/Assembling Front Bumper - Sports
Courtesy of MAZDA MOTORS CORP.
