Air Mix Actuator Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove compartment.
Remove in the order indicated in the table.

Fig 1: Removal Order Of Air Mix Actuator Table
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

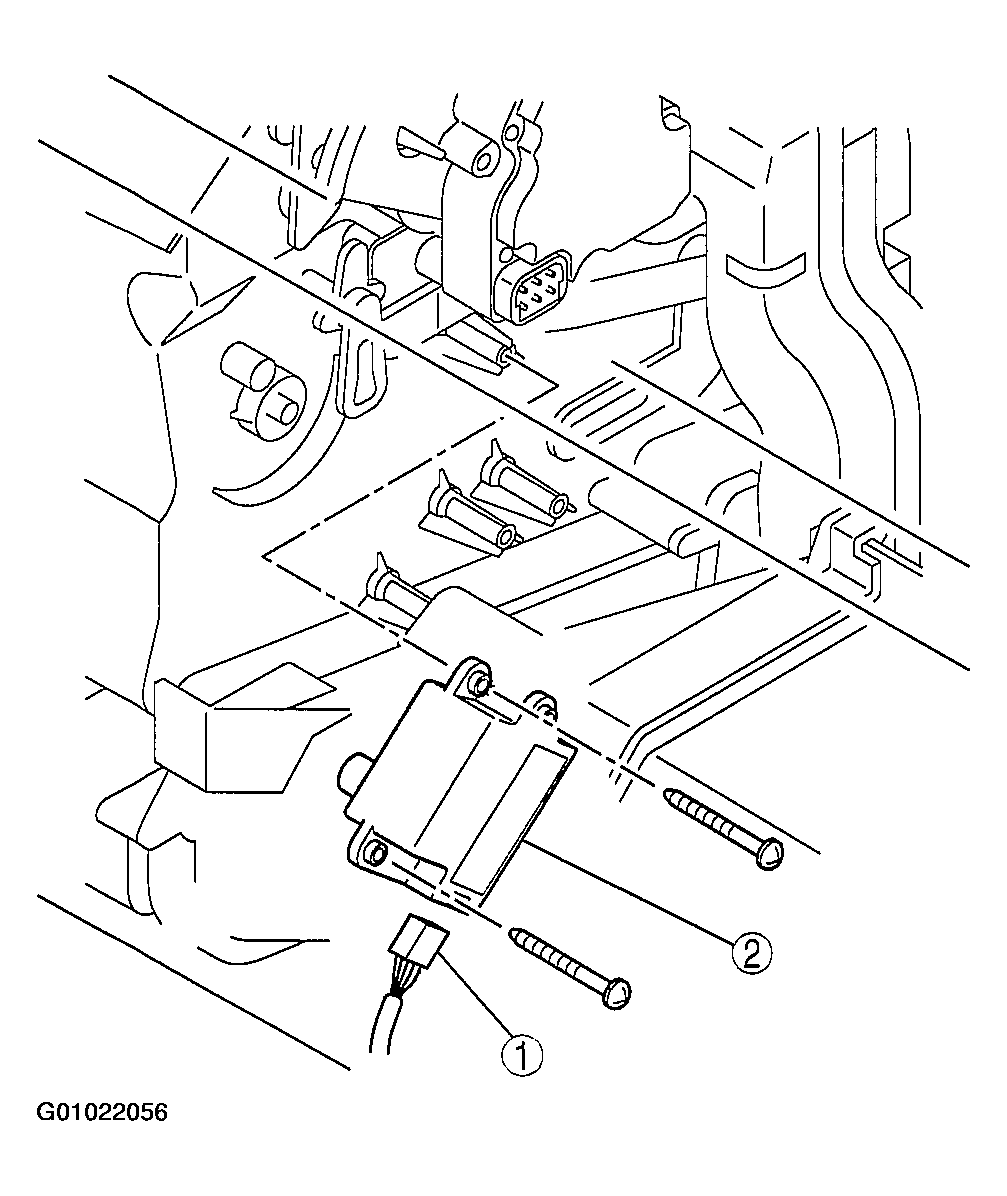

Fig 2: Removing/Installing Air Mix Actuator
Courtesy of MAZDA MOTORS CORP.
