Rear Stabilizer Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the illustration.
  2. Install in the reverse order of removal.

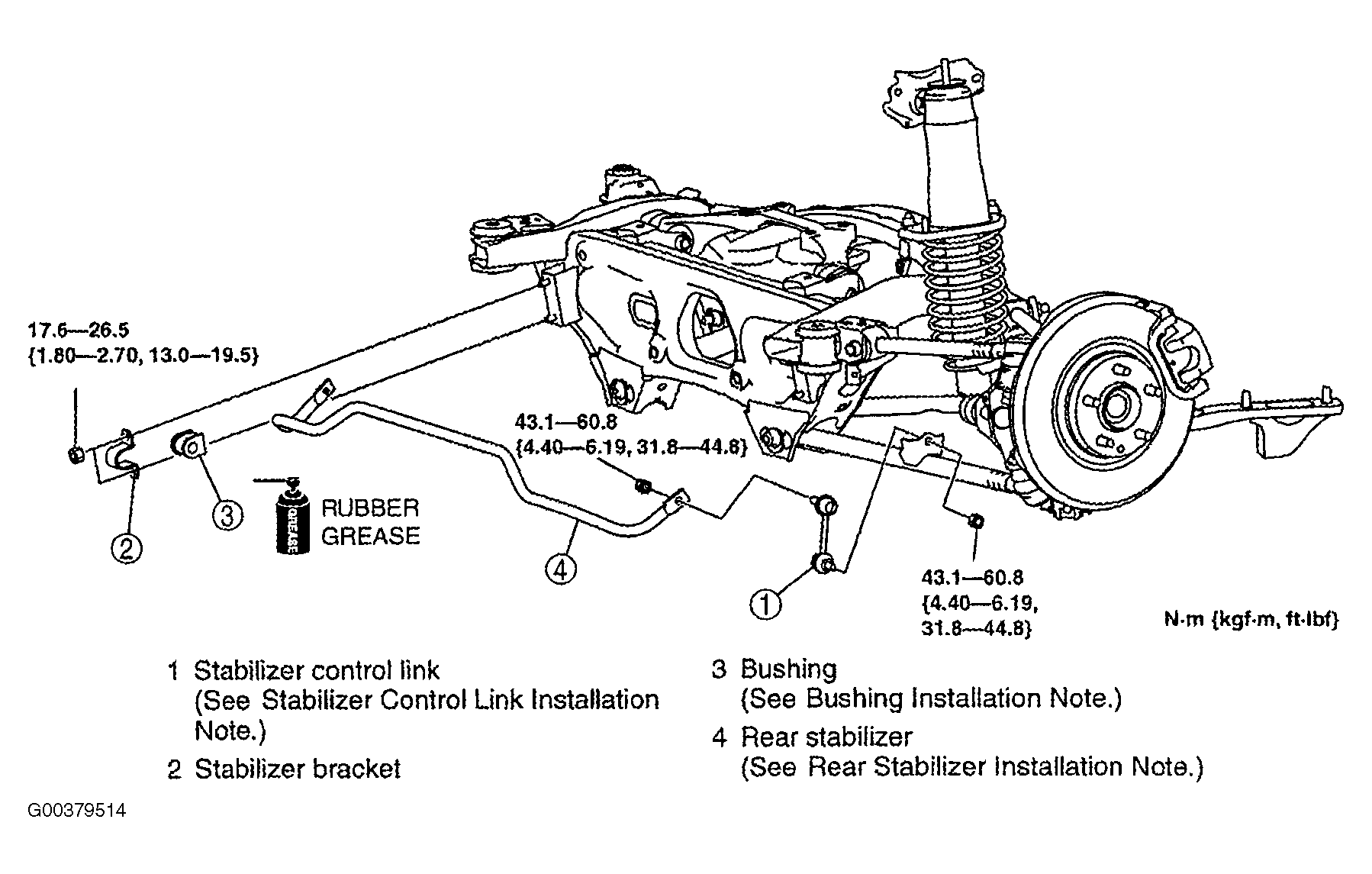

Fig 1: Removing/Installing Rear Stabilizer
G00379514Courtesy of MAZDA MOTORS CORP.
