Removal & Installation

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
For MTX vehicle, remove the shift lever knob. Remove the panel No. 1 using a tape-wrapped screwdriver. See Fig 1.
Remove the panel No. 2 using a tape-wrapped screwdriver, disconnect the cigarette lighter connector, and remove the front ashtray illumination.
Remove the bolts. Disconnect the accessory socket connector.
To install, reverse removal procedure.

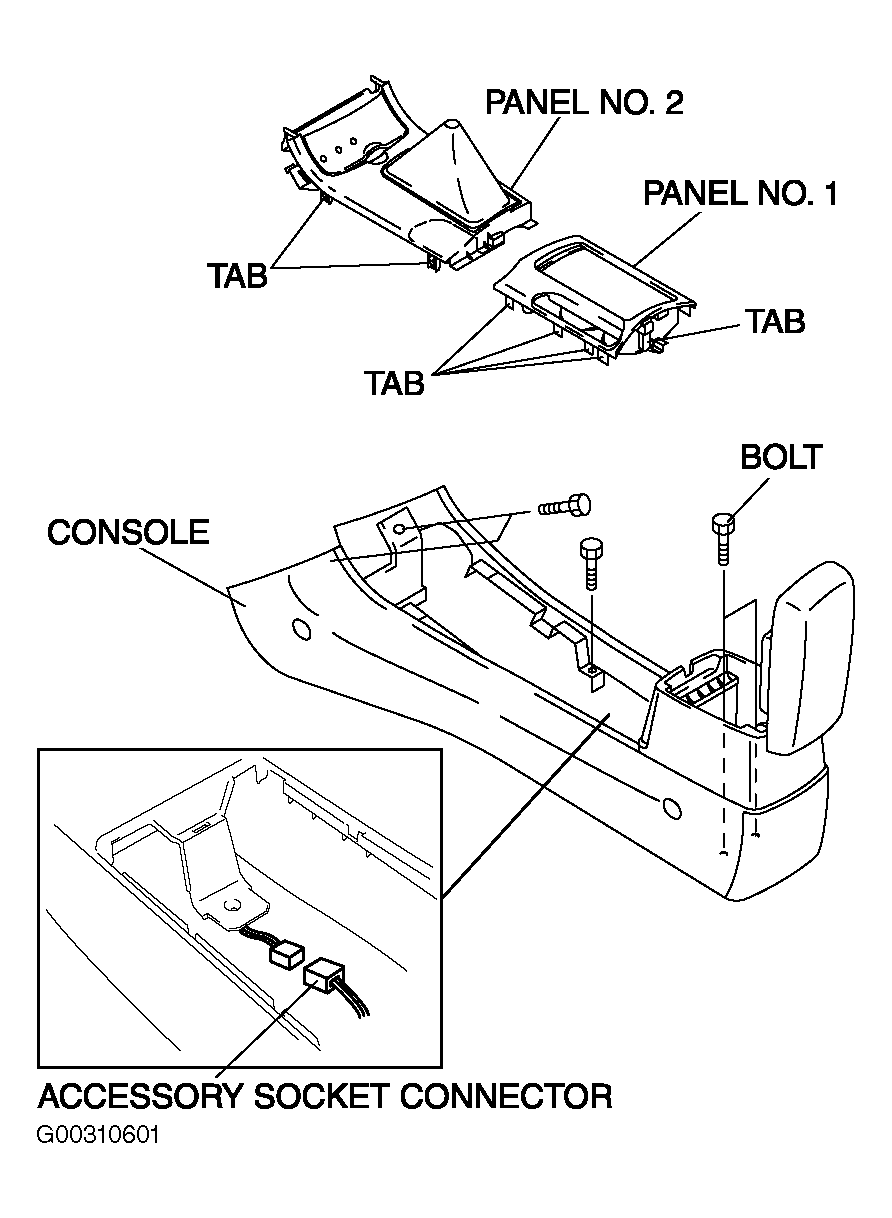

Fig 1: Removing Console

Courtesy of MAZDA MOTORS CORP.
