Ride Height Adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 Mazda B4000, 2003 Mazda B3000, 2003 Mazda B2300, 2002 Mazda B4000, and 2002 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Drive the vehicle onto a runway lift.
Jounce the vehicle's front and rear suspension to normalize the vehicle static ride height.
Measure the distance between the front suspension lower arm bushing center bolt and the runway lift. Record measurement.

Fig 1: Measuring Ride Height (At Lower Arm Bushing Center Bolt)
Courtesy of MAZDA MOTORS CORP.
Measure the distance between the front suspension lower arm (lowest point) and the runway lift. Record the measurement.

Fig 2: Measuring Ride Height (lowest Point)
Courtesy of MAZDA MOTORS CORP.
Determine ride height.
1. Subtract measurement 1 from measurement 2. This is the ride height.
Fig 3: Determining Ride Height
Courtesy of MAZDA MOTORS CORP.

NOTE: The torsion bar adjusting bolt is coated with Loc-tite(R) that wears off after disassembly. If the torsion bar system is ever disassembled or the torsion bar adjusting bolt is ever removed, use a new torsion bar adjusting bolt when re-assembling.

Adjust the torsion bars (height) as necessary by tightening or loosening the torsion bar adjusting bolt.
1. Tighten the torsion bar adjusting bolt to increase the torque or raise the height.
2. Loosen the torsion bar adjusting bolt to decrease the torque or lower the height.

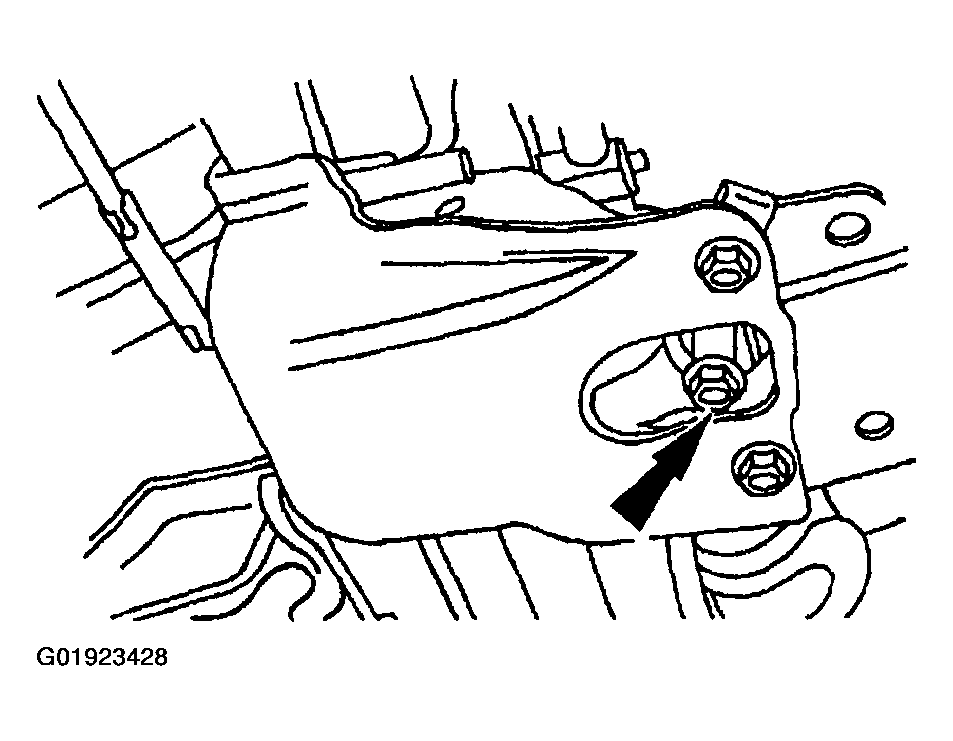

Fig 4: Adjusting Torsion Bars

Courtesy of MAZDA MOTORS CORP.
