TP Sensor Resistance (Protege & 626)

TP SENSOR RESISTANCE (PROTEGE & 626)

Test Condition (1) (2) Ohms
Protege
1.6L 2500-6000
1.8L 4000-6000
626
2.0L 4000-6000
2.5L 2500-5000
(1) With throttle closed.
(2) Between Terminals "A" & "C". See Figure.

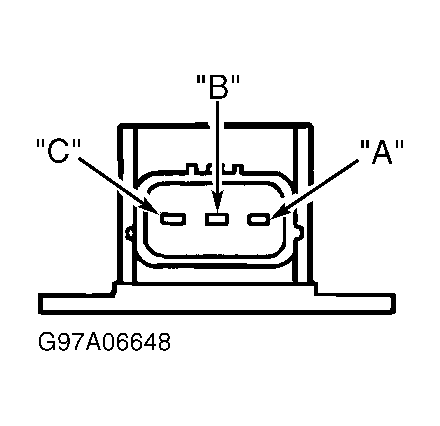

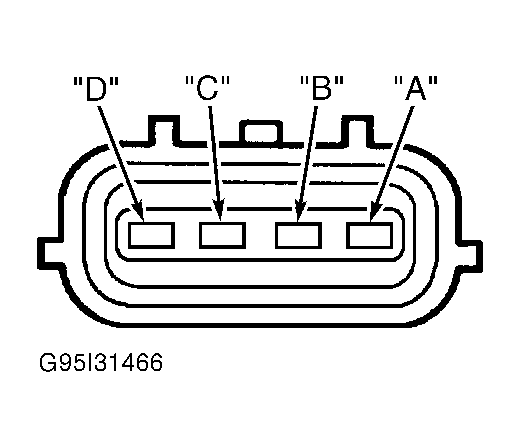

Fig 1: Identifying TP Sensor Connector Terminals (Protege & 626)
G97A06648Courtesy of MAZDA MOTORS CORP.
