Removal & Installation: Pcm: Notes

  1. Disconnect the negative battery cable.
  2. Remove the TCM. See TCM  .
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.

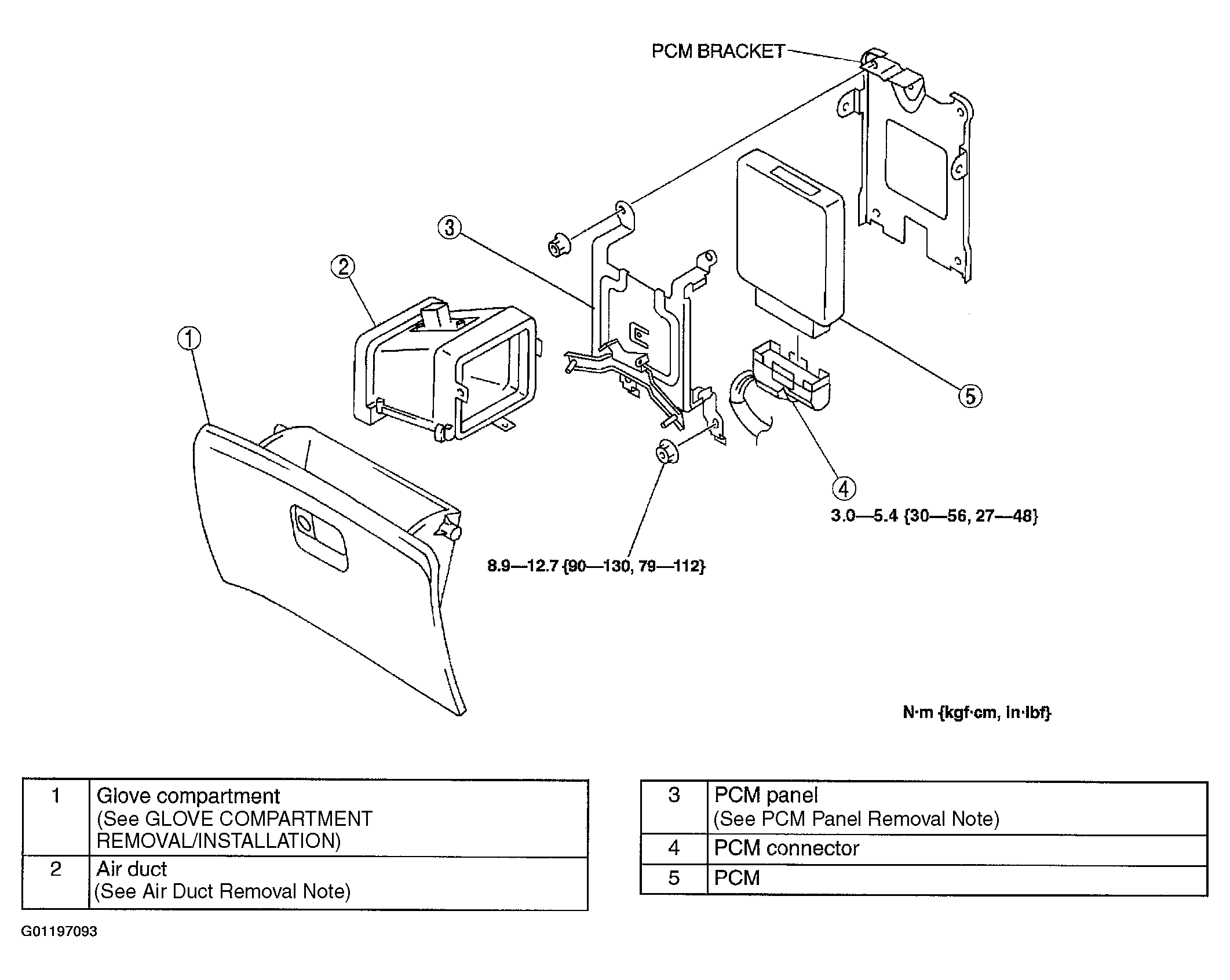

Fig 1: Removing PCM
G01197093
