Vehicle Speed Sensor

Remove vehicle speed sensor from transmission. Connect AC voltmeter (5-volt scale) between vehicle speed sensor terminals. See Fig 1. Rotate vehicle speed sensor driven gear by hand. If voltage pulses are detected, vehicle speed sensor is okay. If voltage pulses are not detected, replace vehicle speed sensor.

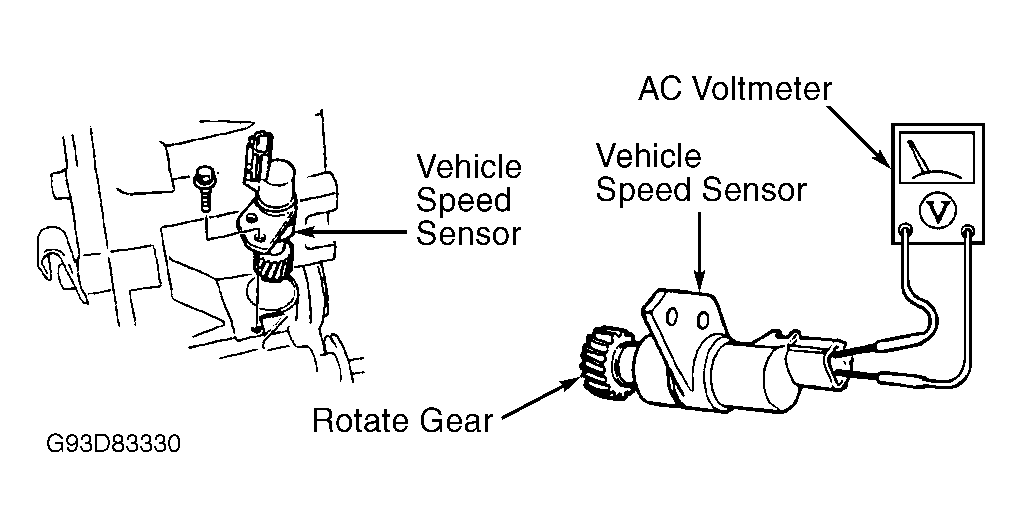

Fig 1: Checking Vehicle Speed Sensor

Courtesy of MAZDA MOTORS CORP.
