Fuel Injector Resistance (Millenia)

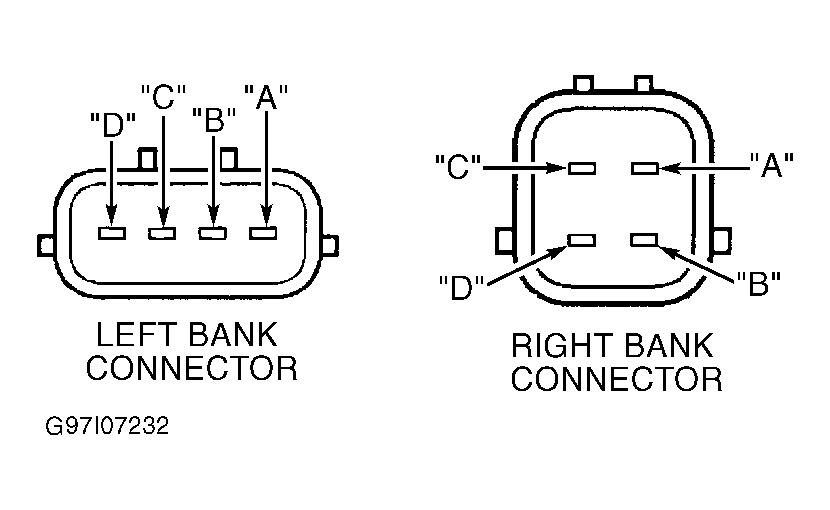

Disconnect fuel injector connectors. Using ohmmeter, measure resistance between injector terminals. See CHECKING FUEL INJECTOR RESISTANCE (MILLENIA) table. See Fig 1 . With sensor temperature at 68°F (20°C), resistance should be about 13.8 ohms. Replace injectors as necessary.
CHECKING FUEL INJECTOR RESISTANCE (MILLENIA)
| Application | Check Between Terminals | ||
|---|---|---|---|
| Fuel Injector | |||
| Left Bank | |||
| 2 | C & D | ||
| 4 | B & D | ||
| 6 | A & D | ||
| Right Bank | |||
| 1 | A & B | ||
| 3 | A & D | ||
| 5 | A & C | ||
