Cigarette Lighter Does Not Work Properly (09-007/00)
Publication date: 2000-07-28Reference number: 09-007/00
CIGARETTE LIGHTER DOES NOT WORK PROPERLY
TECHNICAL SERVICE BULLETIN
Reference Number(s): CAT. 09, NO. 007/00, Date of Issue:
July 28, 2000
CIGARETTE LIGHTER DOES NOT WORK PROPERLY
Model(s): 1997-2001 Mazda Protege, MPV, Miata, Millenia
Category: 09 - Body & Accessories
Bulletin No.: 007/00
Date: July 28, 2000
APPLICABLE MODEL(S)/VINS
1997-2001 Protege, MPV, Miata, Millenia
DESCRIPTION

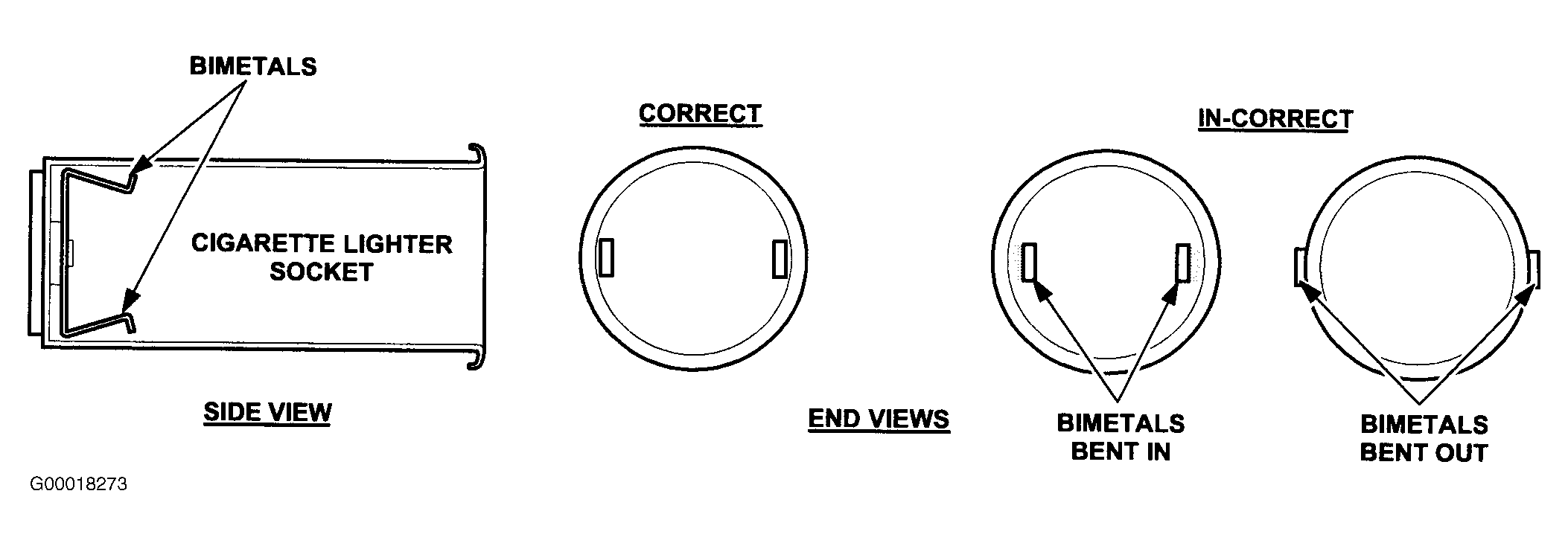

Some customers may state that their cigarette lighter does not work or stay in position. This concern can be caused by the use of an after-market cigarette lighter or a plug adapter of the wrong size for the cigarette lighter socket. As a result, the cigarette lighter socket bimetals can be bent as shown in Fig 1 and/or the socket retainer ring is broken.

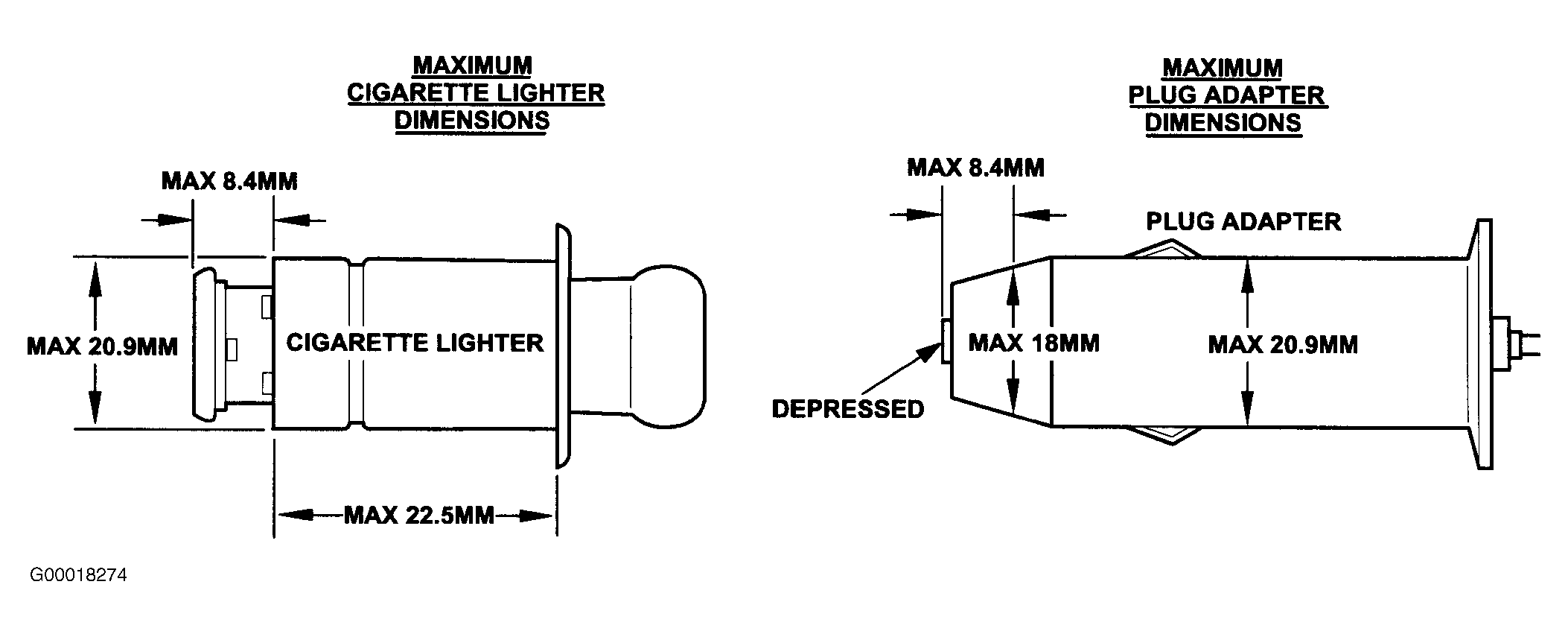

To prevent future concerns, be sure to inform customer of proper usage of power adapters and the necessity of using a cigarette lighter of correct dimensions as shown in Fig 2 .
CAUTION:
Repairs are not covered by warranty if the concern was caused by a cigarette lighter or plug adapter not meeting the above dimensions.
