Removal and Installation

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.

Fig 1: Removing Upper Steering Column Shroud
Courtesy of MAZDA MOTORS CORP.
Remove the upper steering column shroud.

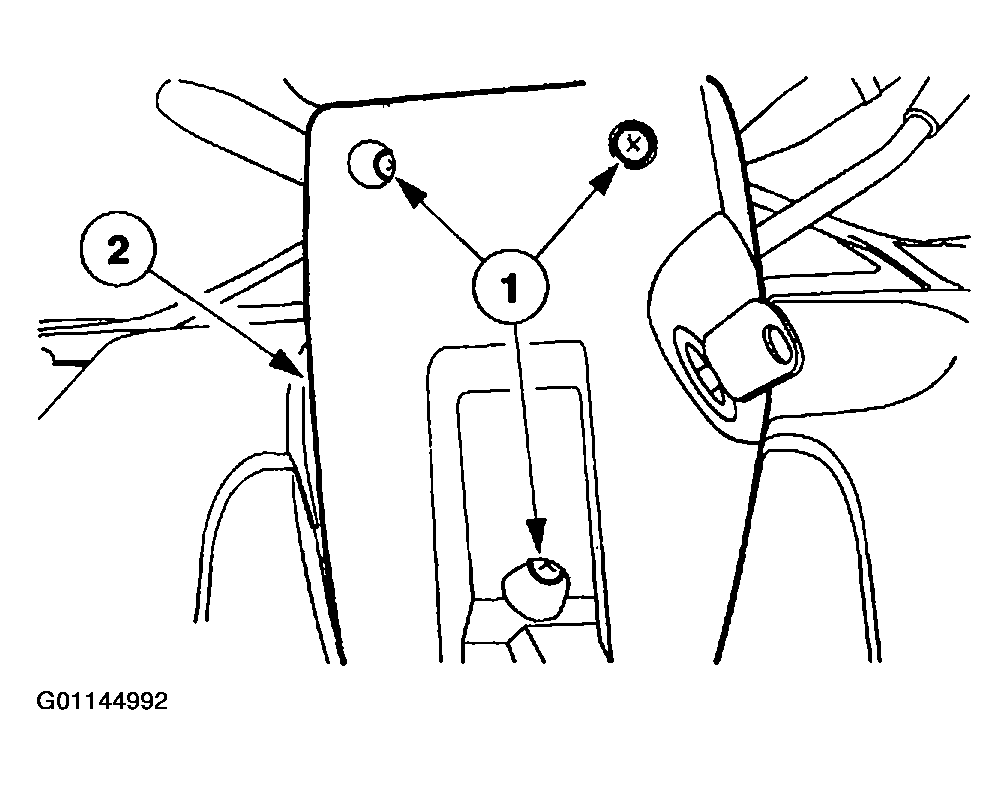

Fig 2: Remove The Lower Steering Column Shroud
Courtesy of MAZDA MOTORS CORP.
Remove the lower steering column shroud.
1. Remove the screws.
2. Remove the lower steering column shroud.

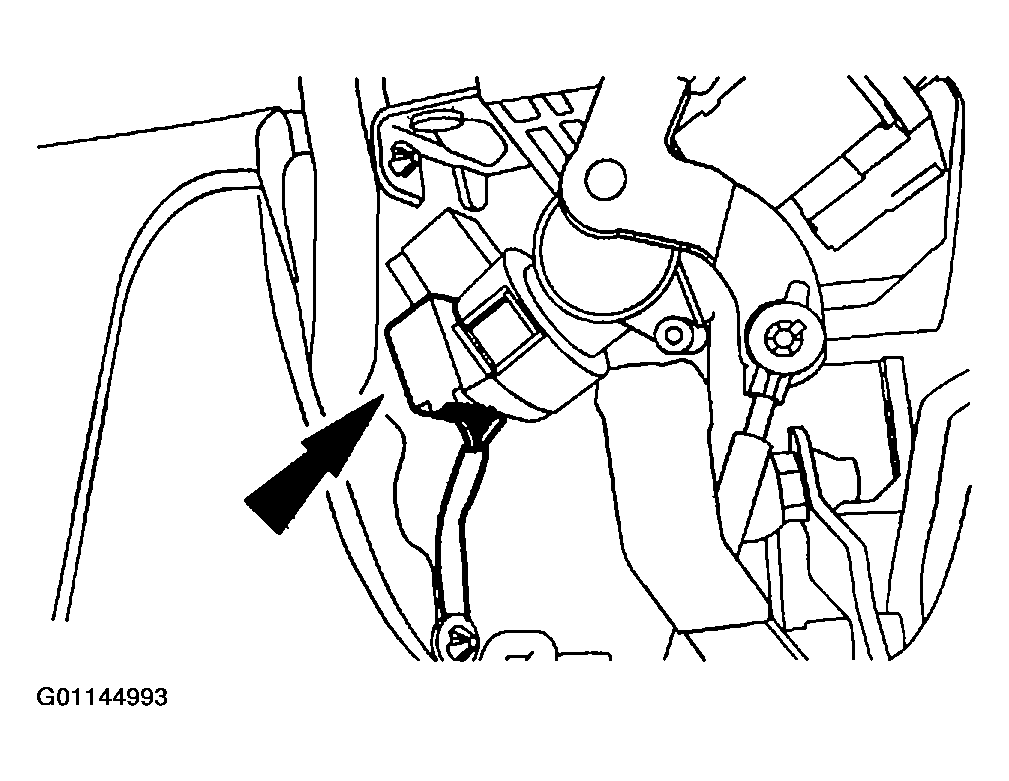

  Fig 3: Disconnecting Ignition Switch Electrical Connector
  Courtesy of MAZDA MOTORS CORP.
Disconnect the ignition switch electrical connector.

Fig 4: Lowering Steering Column To Lowest Tilt Position
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Lower steering column to lowest tilt position.

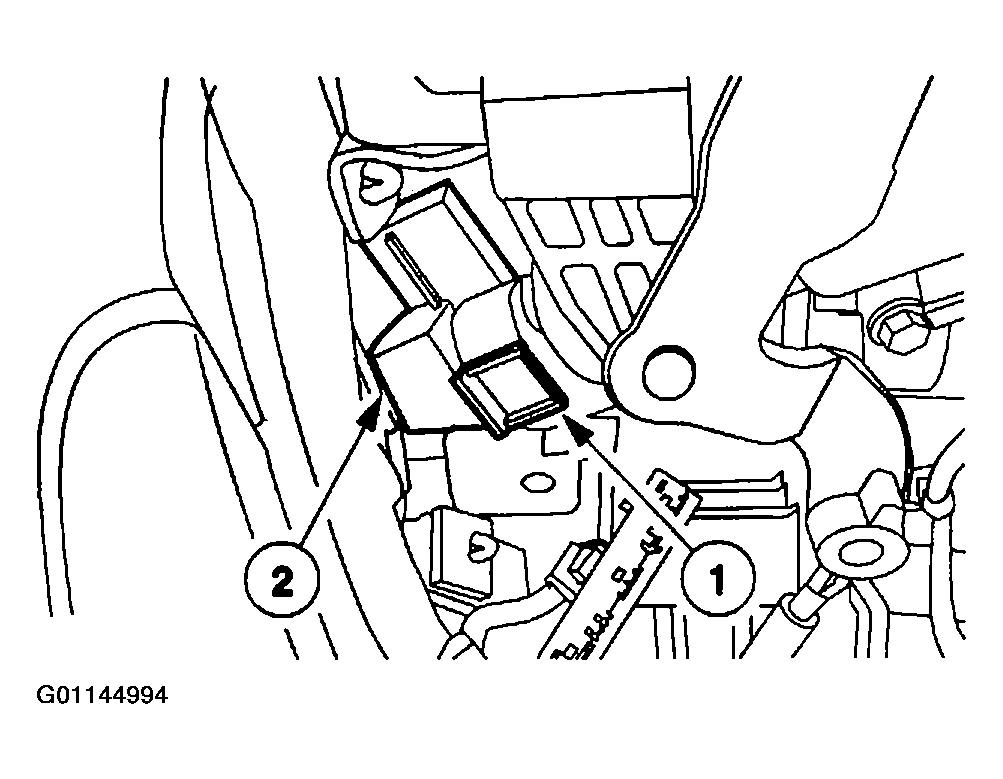

Remove the ignition switch.
1. Depress the two tabs.
2. Remove the ignition switch.
To install reverse the removal procedure.
