Convertible Top Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Cover both sides of the rear window glass with thick cloth to protect the window.
Remove the scuff plate.
Remove the quarter trim.
Remove the rear package trim.
Remove in the order indicated in the table.

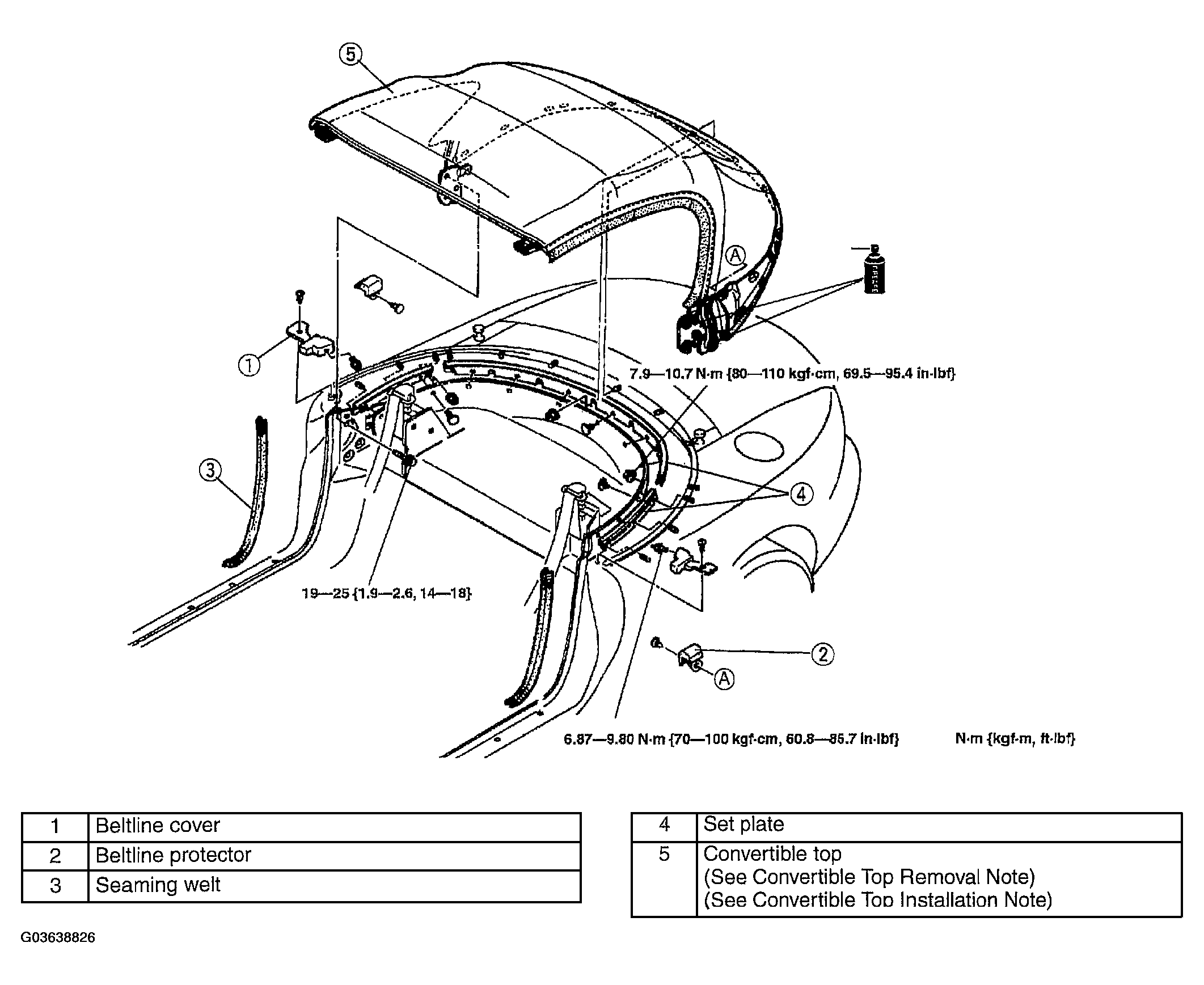

Fig 1: Removing Convertible Top - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
