Set Plate Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the convertible top over and fold it.
  2. Install the front of the top fabric to the front header.
  3. Align the set plate and top fabric with the set plate installation holes.
  4. Install the set plate to the link.

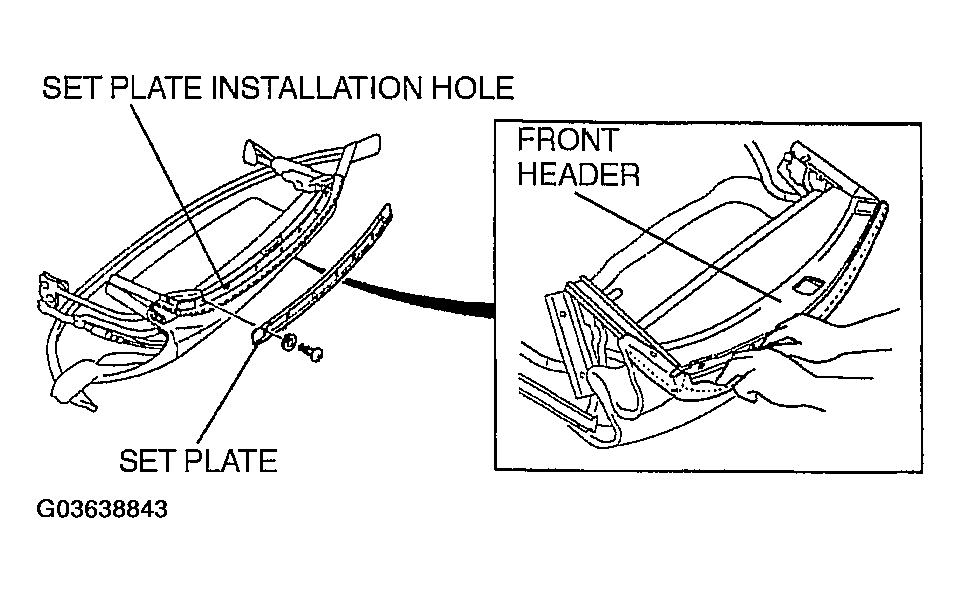

    Fig 1: Installing Set Plate To Link
    G03638843Courtesy of MAZDA MOTORS CORP.
