End Plate Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unfold the convertible top half-way.
  2. Pass the cables through the cable guides.
  3. Install the cables to the rear of the link.
  4. Fold the convertible top.
    Fig 1: Installing Cables To Rear Of Link
    G03638844Courtesy of MAZDA MOTORS CORP.
  5. Install the top fabric to the link.
  6. Unfold the convertible top.
  7. Install the end plates to the link.

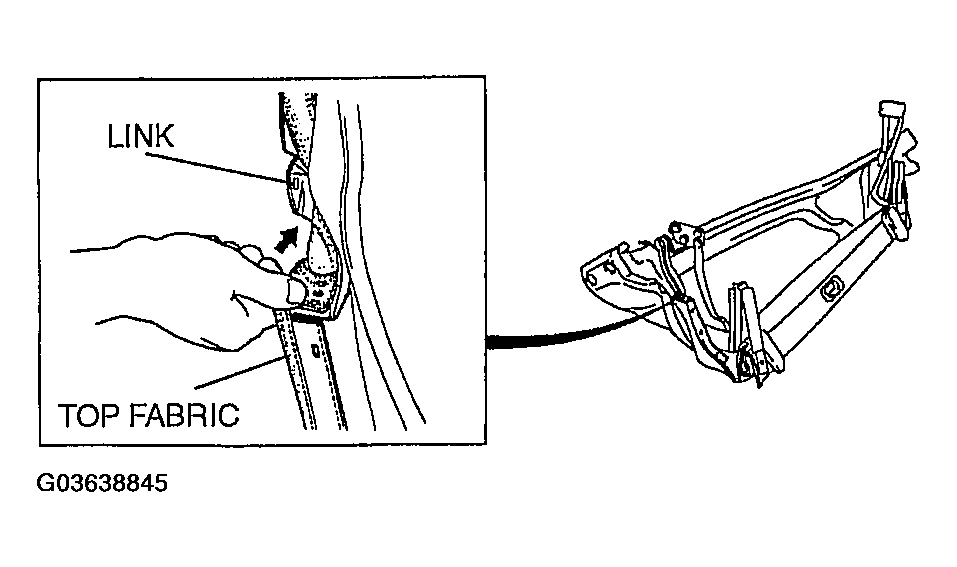

    Fig 2: Installing Top Fabric To Link
    G03638845Courtesy of MAZDA MOTORS CORP.
  8. Rivet the top fabric to the link.

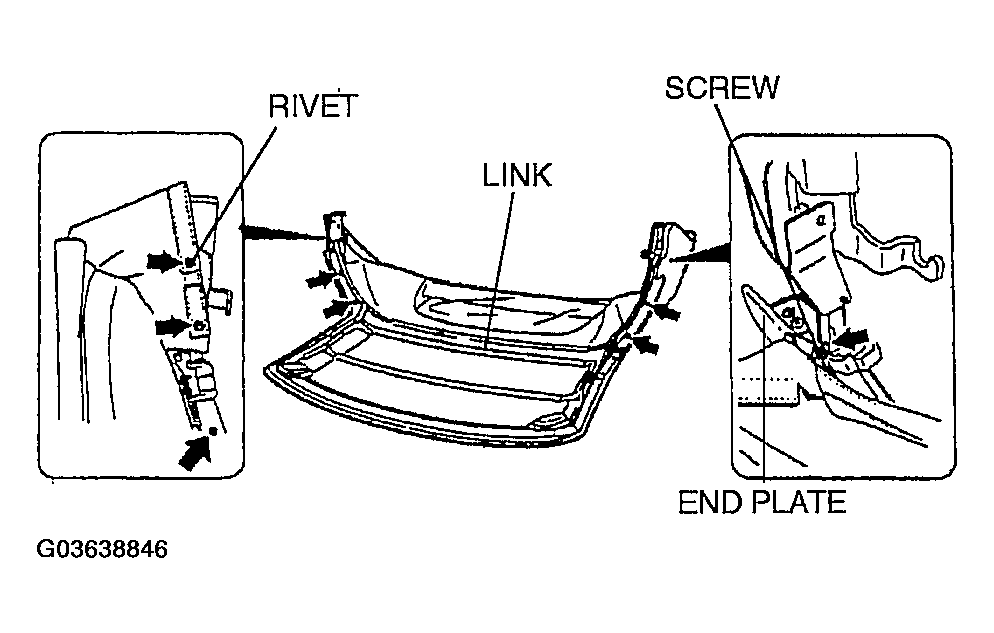

    Fig 3: Riveting Top Fabric To Link
    G03638846Courtesy of MAZDA MOTORS CORP.
