Engine Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pressure switch. (See OIL PRESSURE INSPECTION .)
  2. Remove the OCV. (BP) (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [BP] .)
  3. Remove the oil pipe. (BP) (See TIMING BELT REMOVAL/INSTALLATION .)
  4. Remove the camshaft position sensor.
  5. Remove the crankshaft position sensor.
  6. Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [BP] .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .)
  7. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP] .) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .)
  8. Remove the generator.
  9. Remove the oil filter. (See OIL FILTER REPLACEMENT .)
  10. Remove the oil cooler.
  11. Remove the thermostat. (See THERMOSTAT REMOVAL/INSTALLATION .)
  12. Disassemble in the order indicated in the table.
  13. Assemble in the reverse order of disassembly.

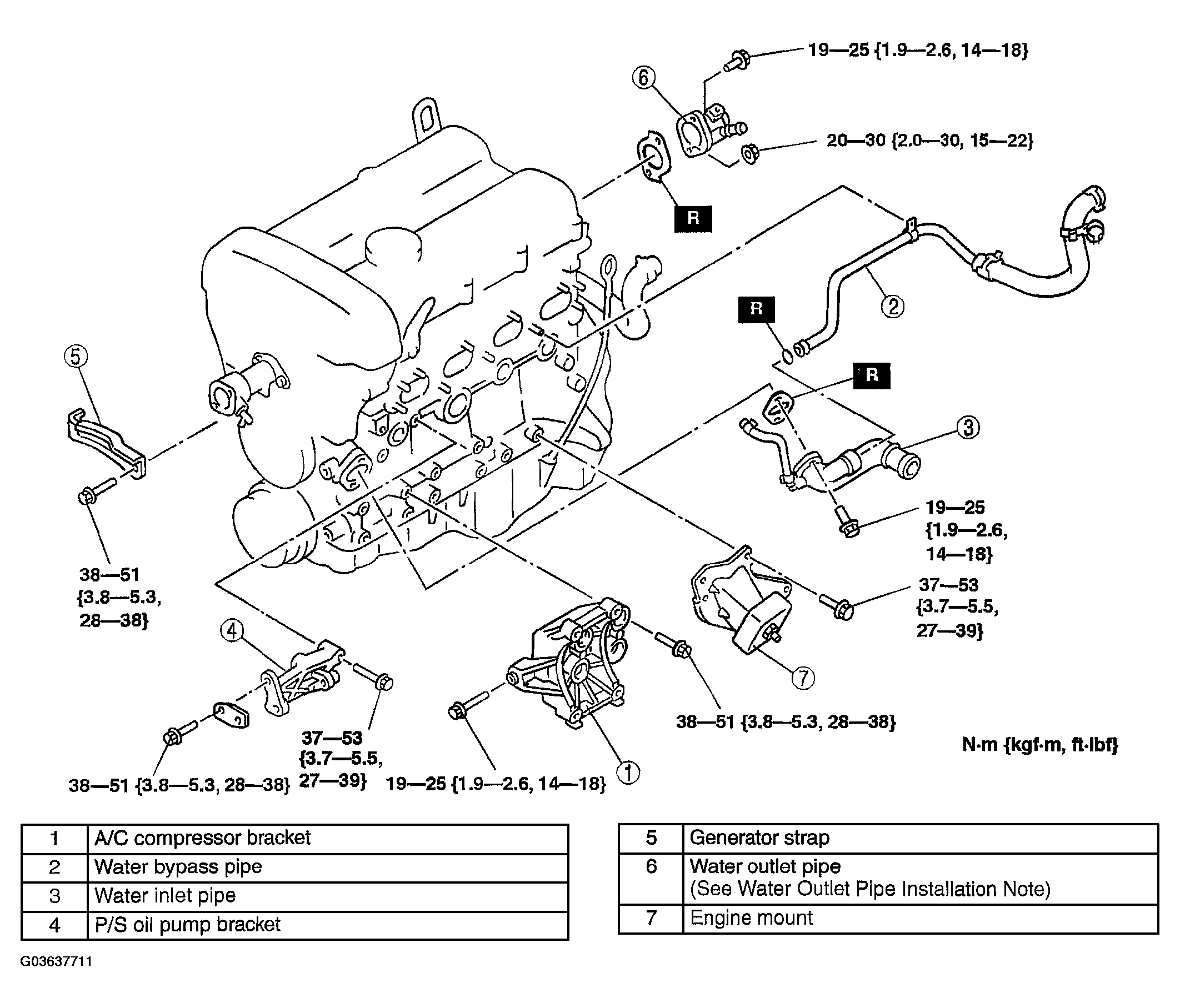

    Fig 1: Dissembling Engine Assembly & Torque Specifications
    G03637711Courtesy of MAZDA MOTORS CORP.
