Front Seat Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read the service warnings before handling the front seat (with a side air bag). (See SERVICE WARNINGS .)
  1. Turn the ignition switch to the LOCK position.
  2. Disconnect the negative battery cable and wait for 1 min or more  .
  3. Disconnect the connector.

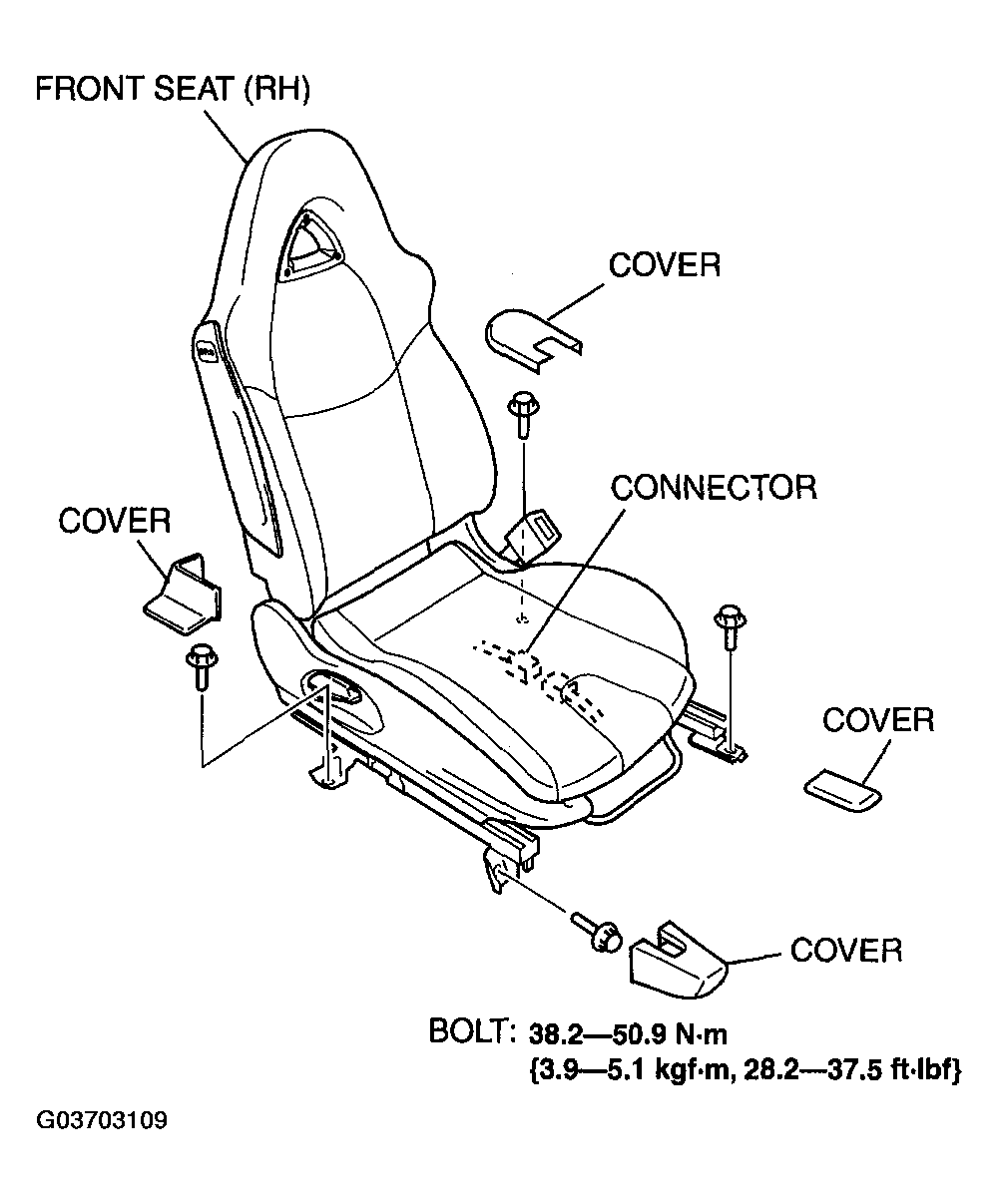

    Fig 1: Exploded View Of Front Seat With Torque Specification (1 Of 2)
    G03703109Courtesy of MAZDA MOTORS CORP.

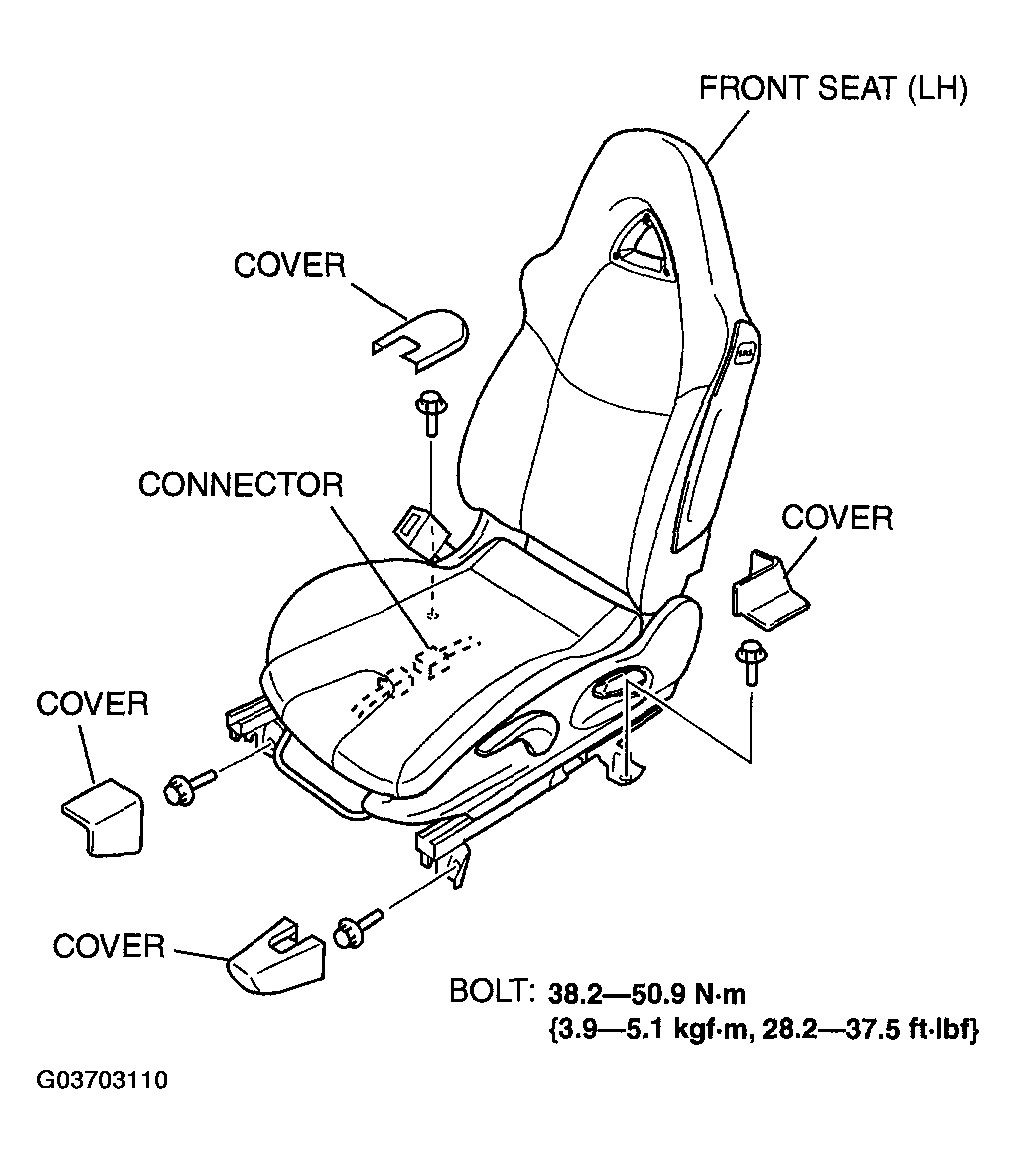

    Fig 2: Exploded View Of Front Seat With Torque Specification (2 Of 2)
    G03703110Courtesy of MAZDA MOTORS CORP.
  4. Remove the covers.
  5. Remove the bolts, then remove the front seat.
  6. Install in the reverse order of removal.
