Rear Stabilizer Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.

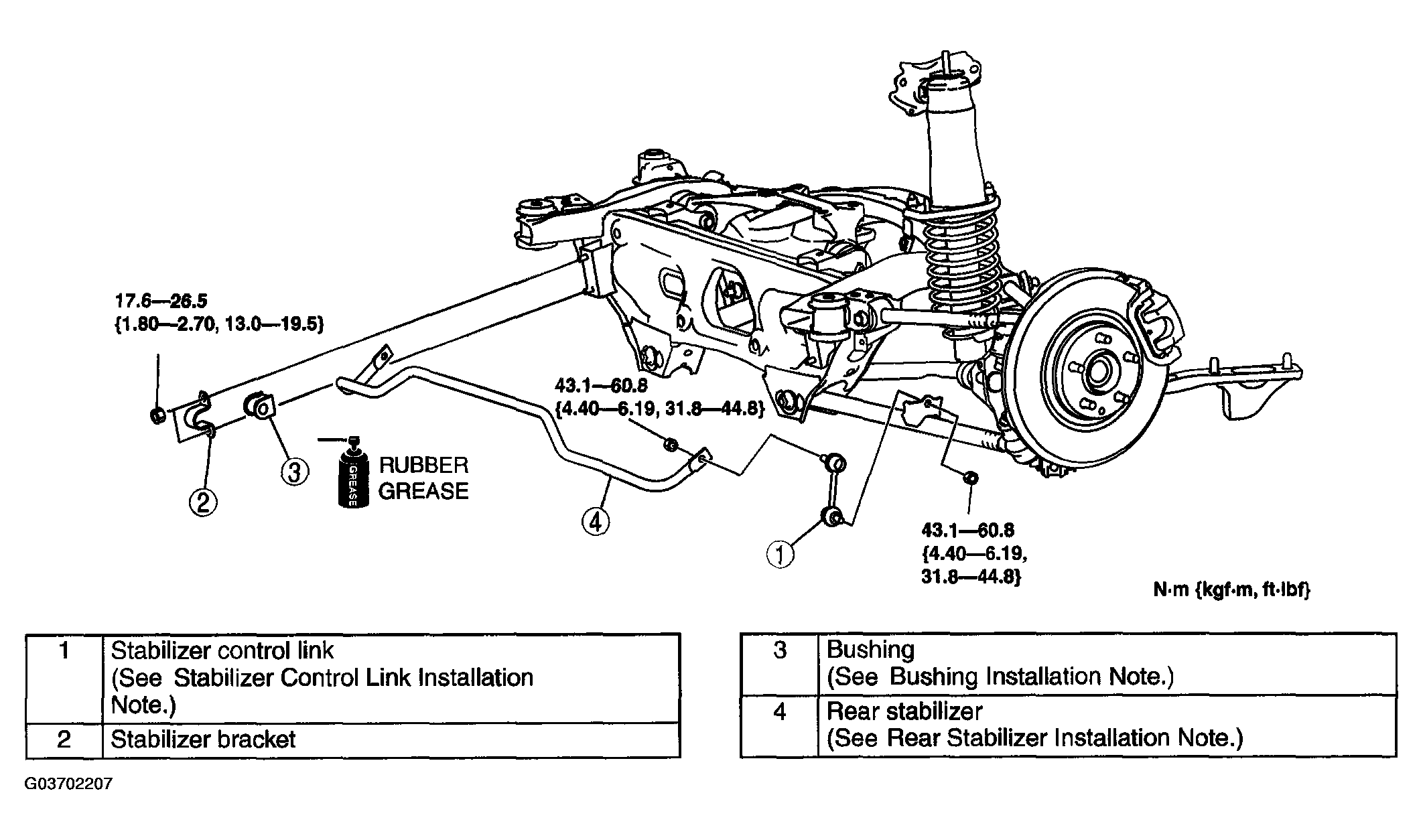

Fig 1: Rear Stabilizer Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
