Water Pump Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
  2. Remove the battery cover.
  3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  5. Remove the battery, battery box, battery tray. (See BATTERY REMOVAL/INSTALLATION .)
  6. Before positioning the drive belt out of the way, loosen the water pump pulley installation bolt.
  7. Position the drive belt out of the way. (See DRIVE BELT REPLACEMENT .)
  8. Remove in the order indicated in the table.
  9. Install in the reverse order of removal.
  10. Add engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  11. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)

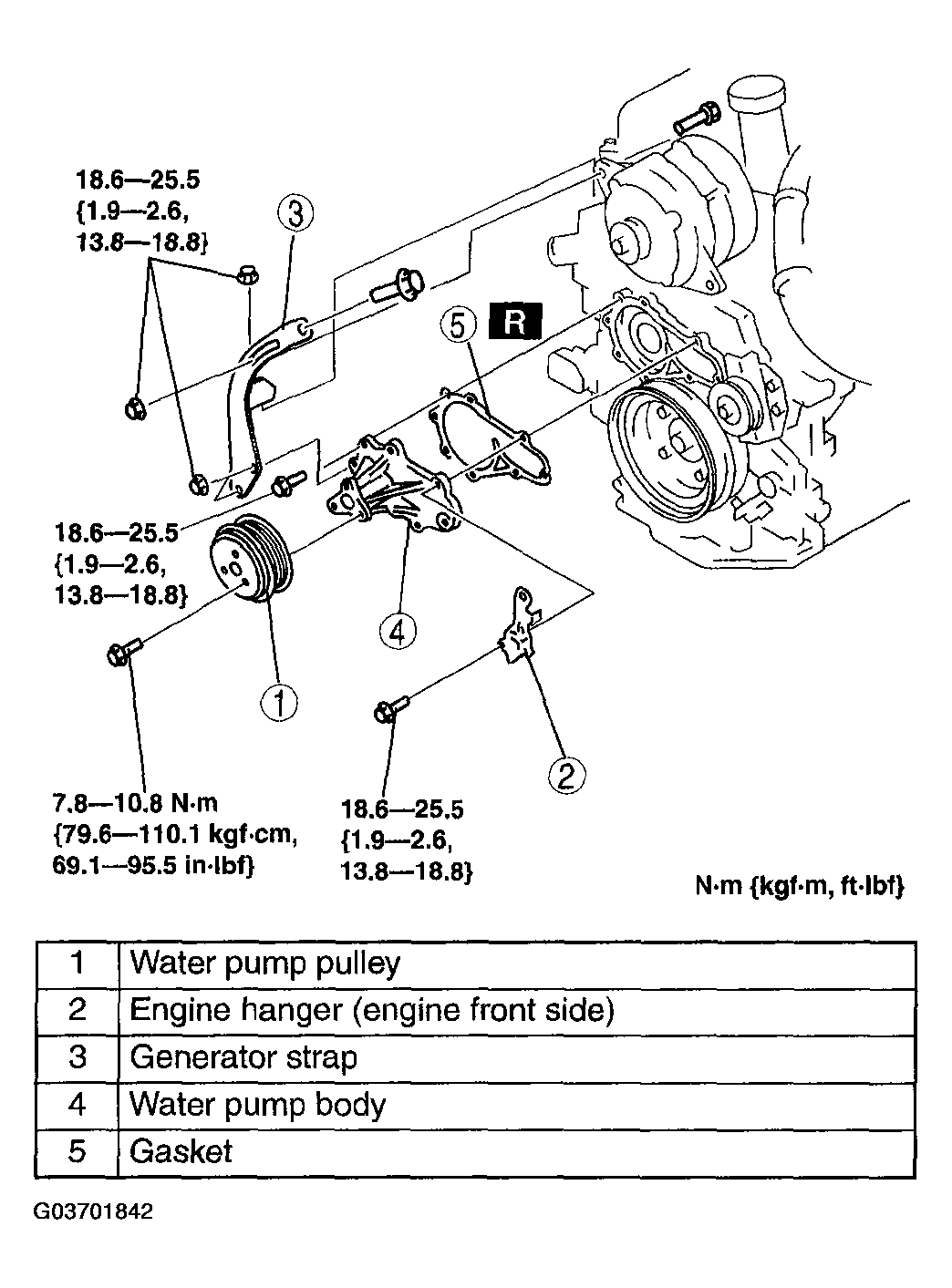

    Fig 1: Installing Water Pump With Torque Specifications
    G03701842Courtesy of MAZDA MOTORS CORP.
